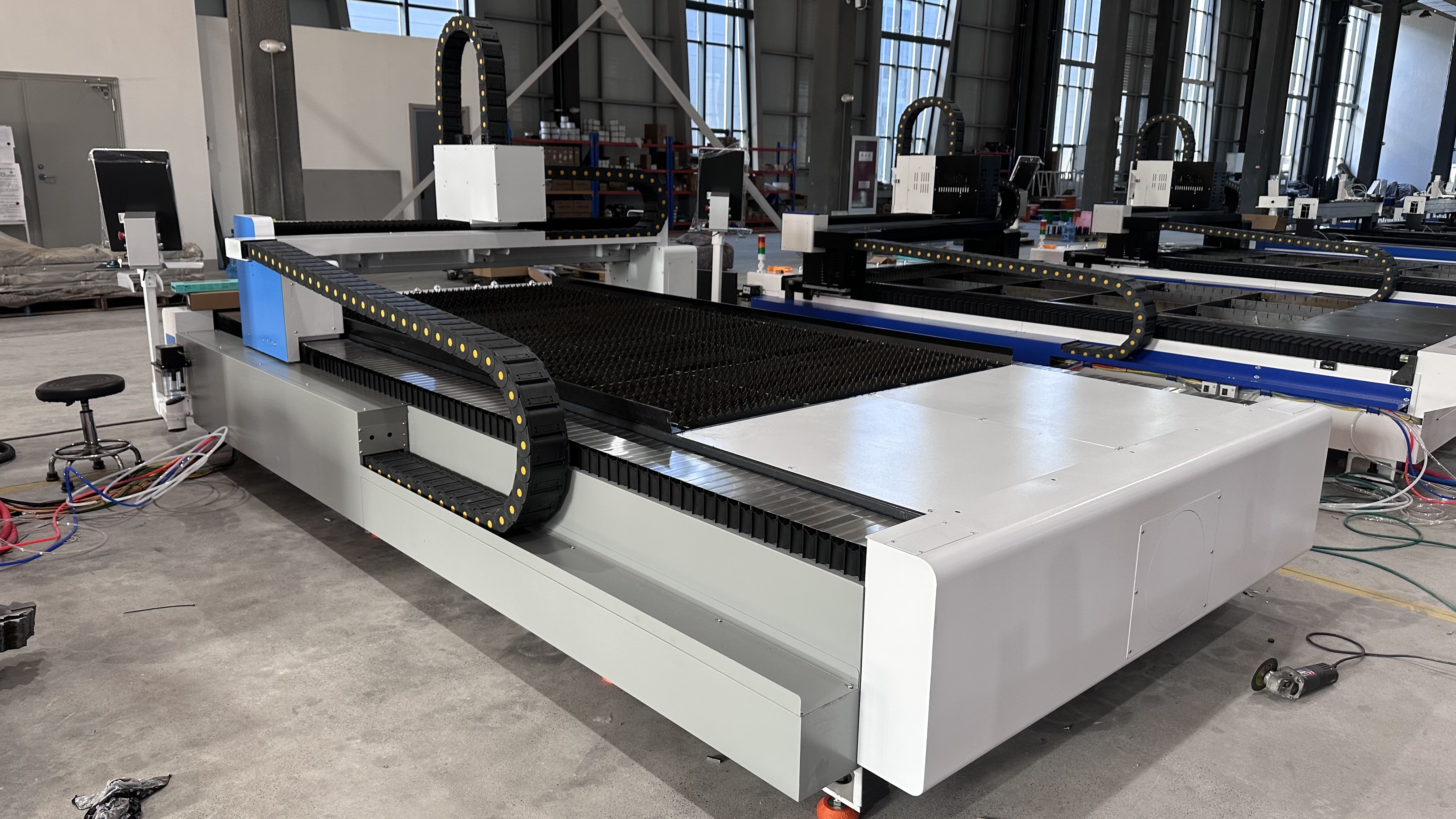

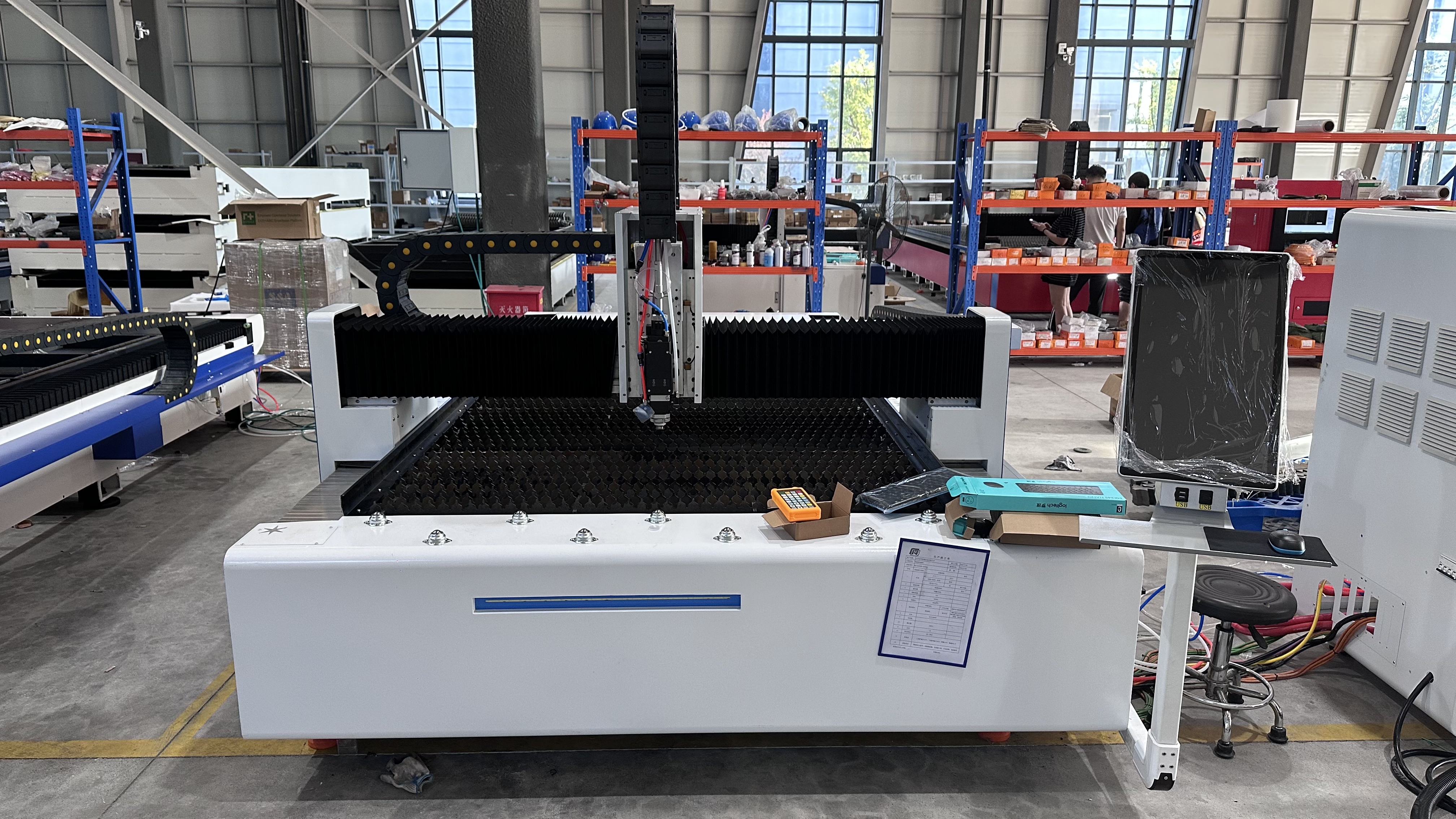

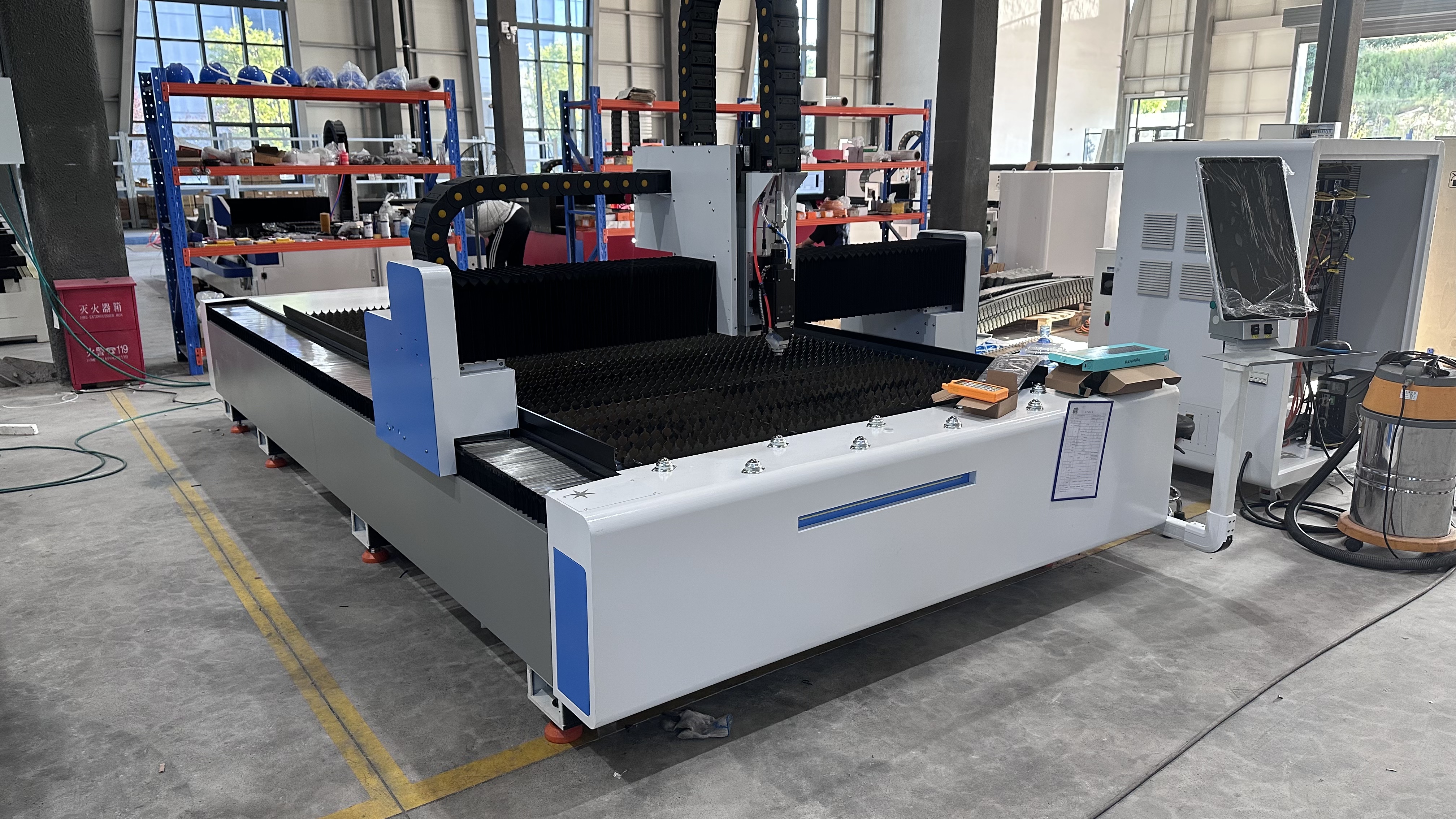

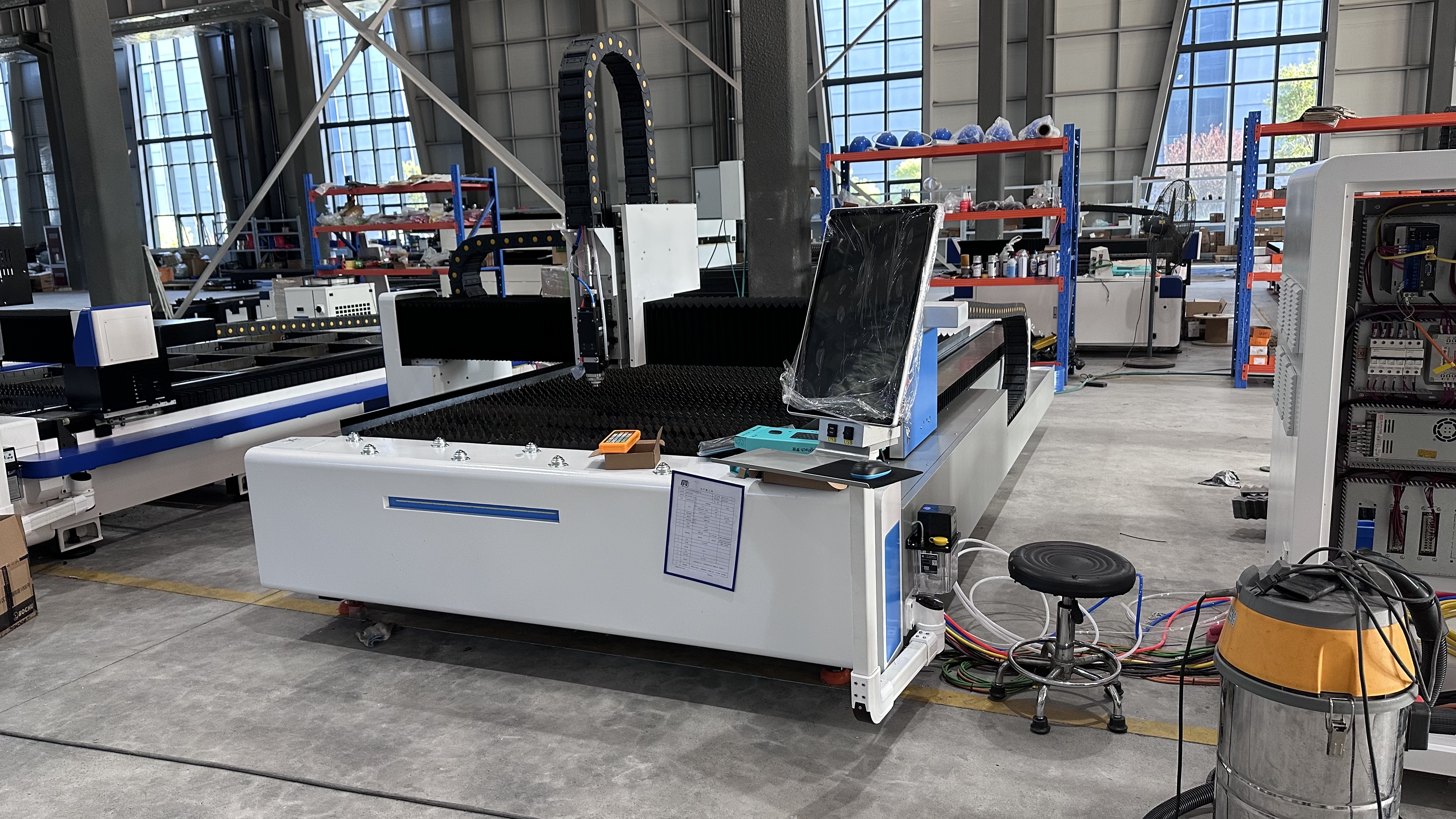

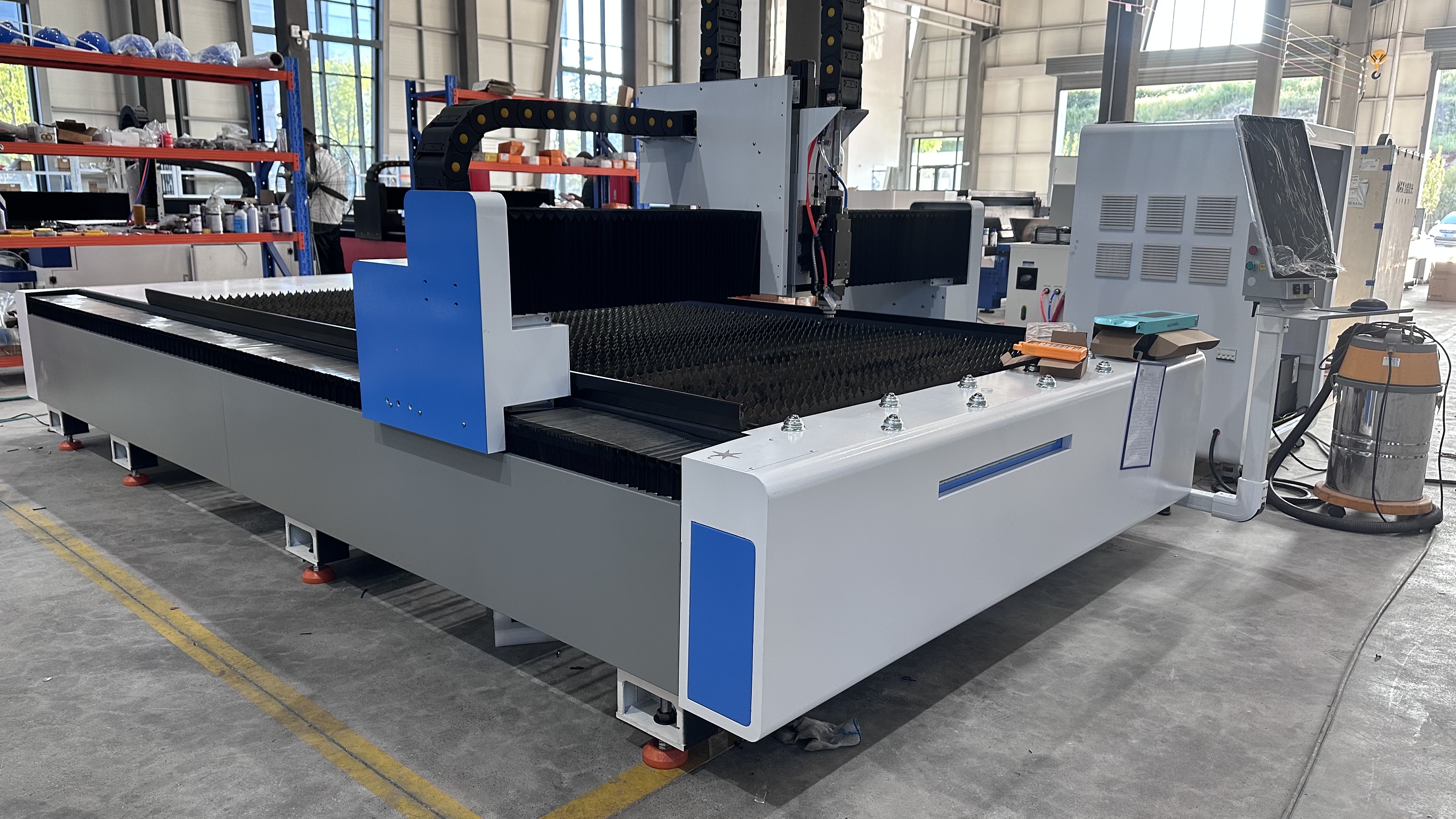

1530-3KW Fiber Laser Cutting Machine – Precision, Speed & Reliability
1. Introduction of the fiber laser cutting machine:
The 1530-3KW fiber laser cutting machine is engineered for high-performance metal fabrication, delivering exceptional precision, efficiency, and durability. Designed for industries ranging from automotive to aerospace, this machine combines advanced laser technology with robust construction to maximize productivity and minimize operational costs.
Unlike traditional CO₂ lasers or low-power fiber lasers, the 3KW laser source ensures faster cutting speeds and superior edge quality, making it ideal for sheet metal, tubes, and structural steel applications.
2. Key Features & Advantages of the fiber laser cutting machine:
(1) High-Power Fiber Laser Source
3KW MAX Fiber Laser: Offers higher energy efficiency
Stable Beam Quality: Maintains consistent cutting performance even after prolonged use.
Lower Maintenance Costs: No gas consumables or mirrors, reducing long-term operational expenses.
(2) Large Cutting Area (1500mm x 3000mm)

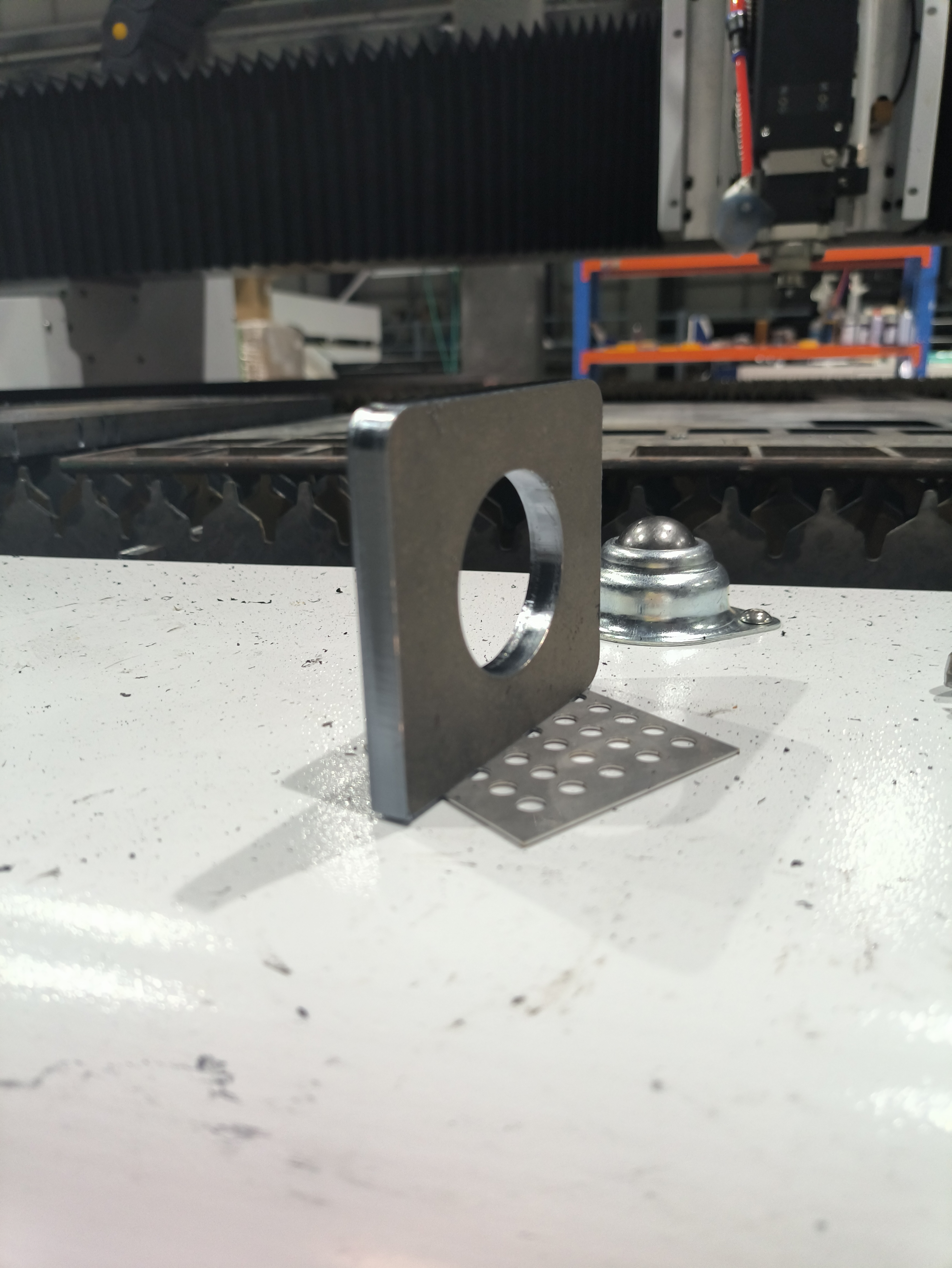

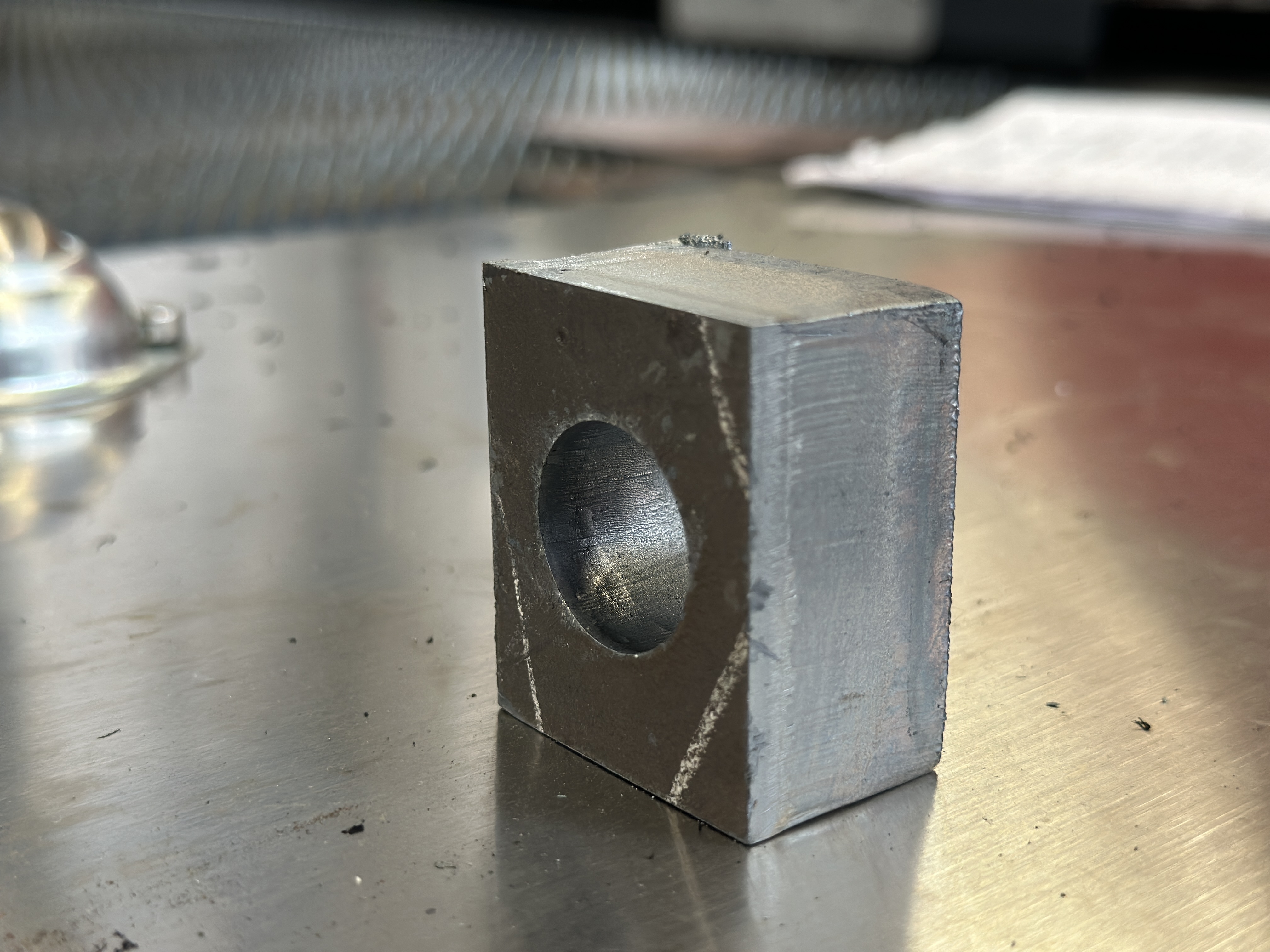

Handles sheets up to 25mm (carbon steel), 12mm (stainless steel), and 8mm (aluminum) with smooth edges.
Ideal for industrial fabrication, machinery parts, and architectural metalwork.
(3) High-Speed Linear Guide Rail System
Precision-ground linear guides + servo motors, ensuring ±0.03mm repeatability.
Cutting speeds up to 120m/min (varies by material thickness).
(4) Intelligent CNC Control System
Latest DSP-based controller .
Automatic focus adjustment & real-time parameter optimization.
Supports CAD/CAM file formats (DXF, DWG, AI, etc.).
(5) Enhanced Safety & Automation
Fully enclosed workspace with anti-collision sensors.
Auto-loading/unloading options available (compatible with robotic arms or conveyor systems).
3.Technical Specifications of the fiber laser cutting machine:
Model | Fiber laser cutting machine |
Working Area | 1500*3000mm |
Laser Power | 3kw |
Laser Generator | MAX |
Laser Wave Length | 1064nm |
Working Table | Sawtooth-table |
Maximum Idle Running Speed | 140m/min |
Maximum acceleration | 1.5G |
Position Accuracy | ±0.02mm/m |
Repeat Positional Accuracy | ± 0.01mm |
Control System | PC control with CYPCUT |
Position Type | red dot |
Power Consumption | ≤12KW |
Working Voltage | 380V ±10 % 50/60Hz |
Auxiliary Gas | oxygen,nitrogen,air |
Working life of fiber module | More than 100000 hours |

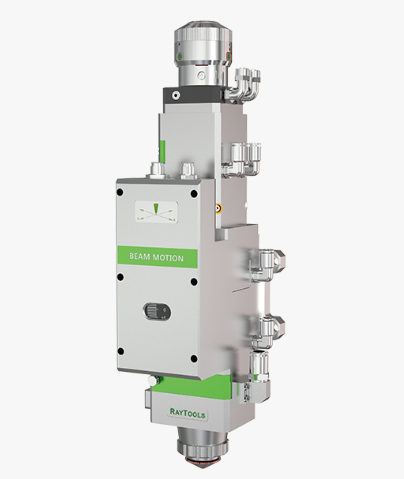

Fiber laser cutting head | BM 110 Auto focus laser cutting head |
Cooling System | Hanli industrial water chiller |
Work Environment | 0-45°C, Moisture 45-85% |
Delivery time | 25 working days |
4. Applications & Industries Served of the the laser cutting machine:
✔ Automotive Parts – Chassis components, exhaust pipes, brackets
✔ Sheet Metal Fabrication – Enclosures, computer cases, HVAC ducts
✔ Industrial Machinery – Agricultural equipment, conveyor systems
✔ Aerospace & Defense – Aircraft panels, titanium components
✔ Decorative Metalwork – Signage, railings, artistic sculptures
5. Why Choose Our 1530-3KW Laser Cutting Machine?
(1) Stable Performance & Long Lifespan
Ball screw drives + HIWIN guideways ensure minimum wear & tear.
Laser source lifespan exceeds 100,000 hours.
(2) Energy-Efficient Operation
30% lower power consumption compared to CO₂ lasers.
(3) Flexible Customization Options
Adjustable bed size (2040, 2060, etc.).
Upgrade to 4KW/6KW fiber laser versions.
Optional automatic material conveyor.
(4) Global Service & Support
24/7 technical assistance. Overseas engineer dispatch available for installation/training.
6.Conclusion of the fiber laser cutting machine:
Our 1530-3KW fiber laser cutting machine provides industrial-grade durability, cutting-edge technology, and unbeatable efficiency, making it the preferred choice for businesses requiring high-volume, high-quality metal processing.
