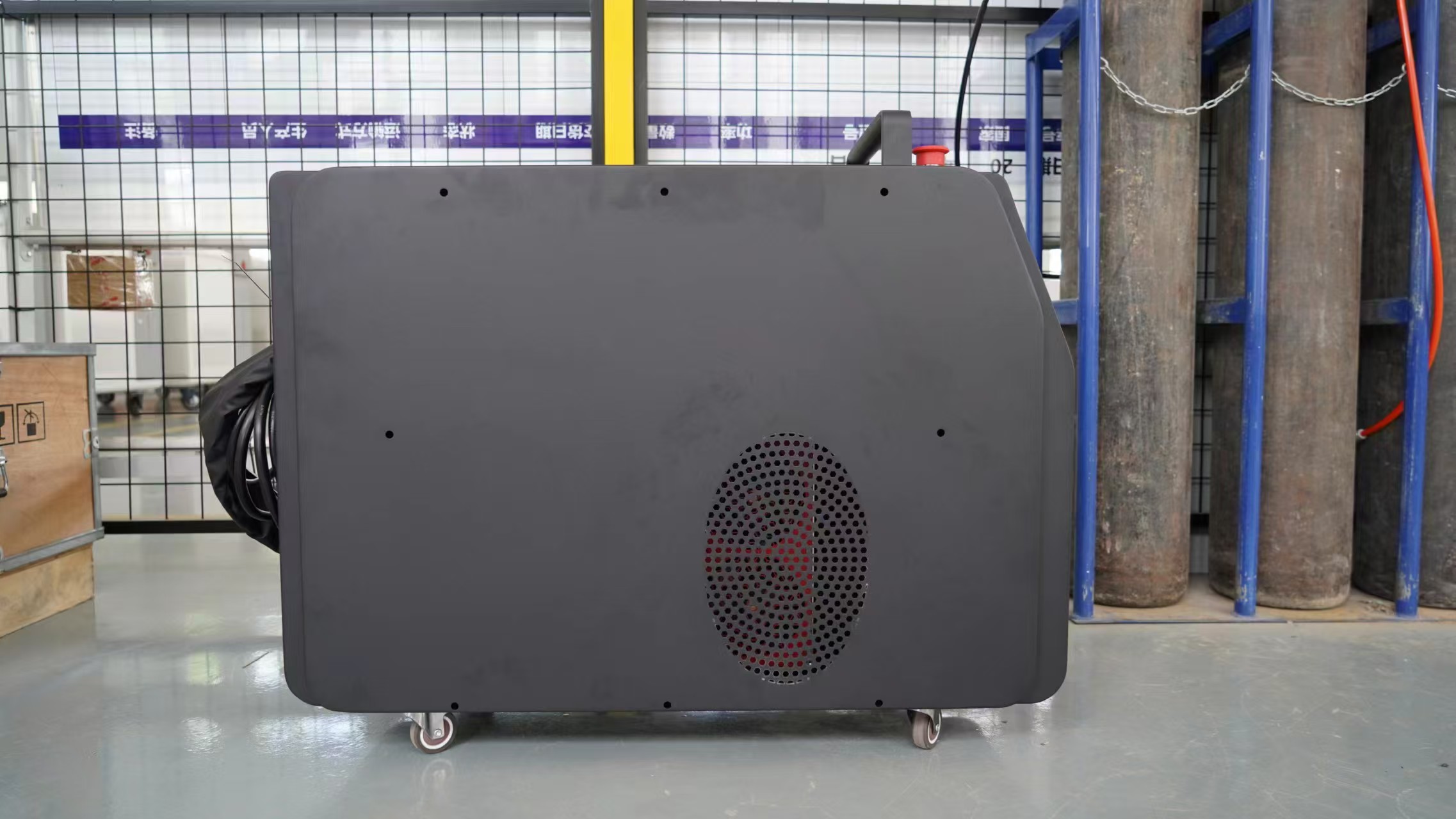

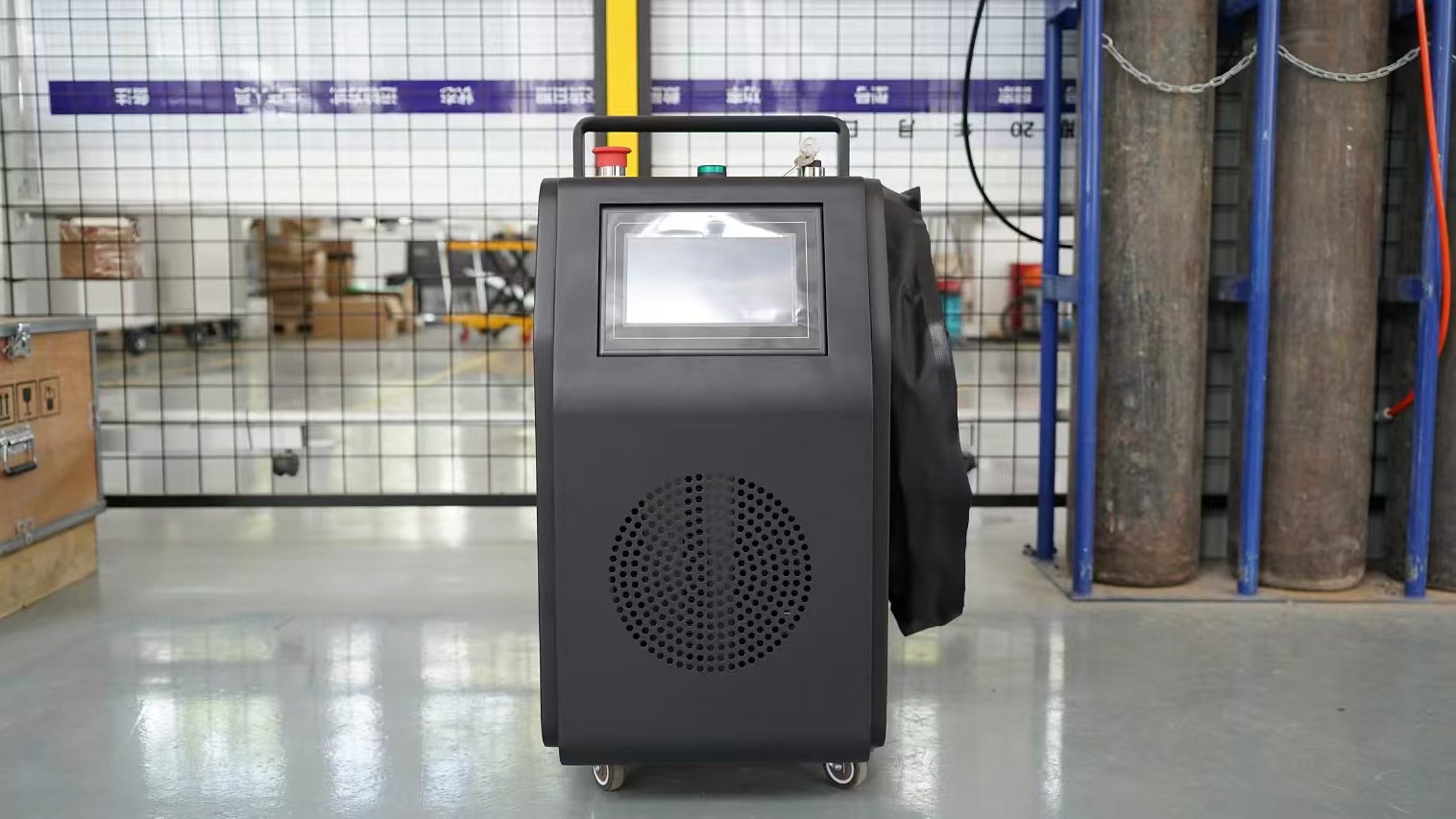

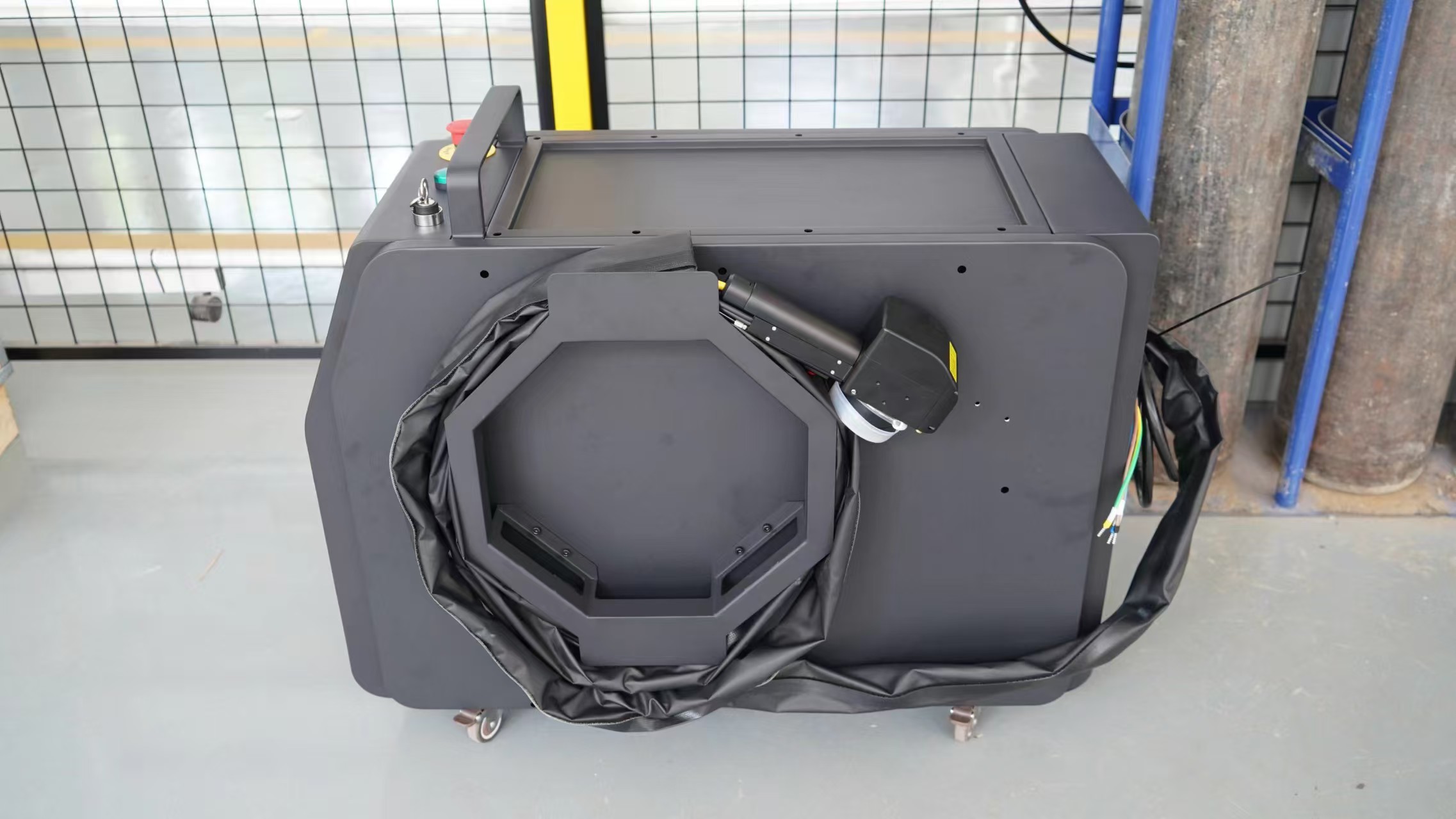

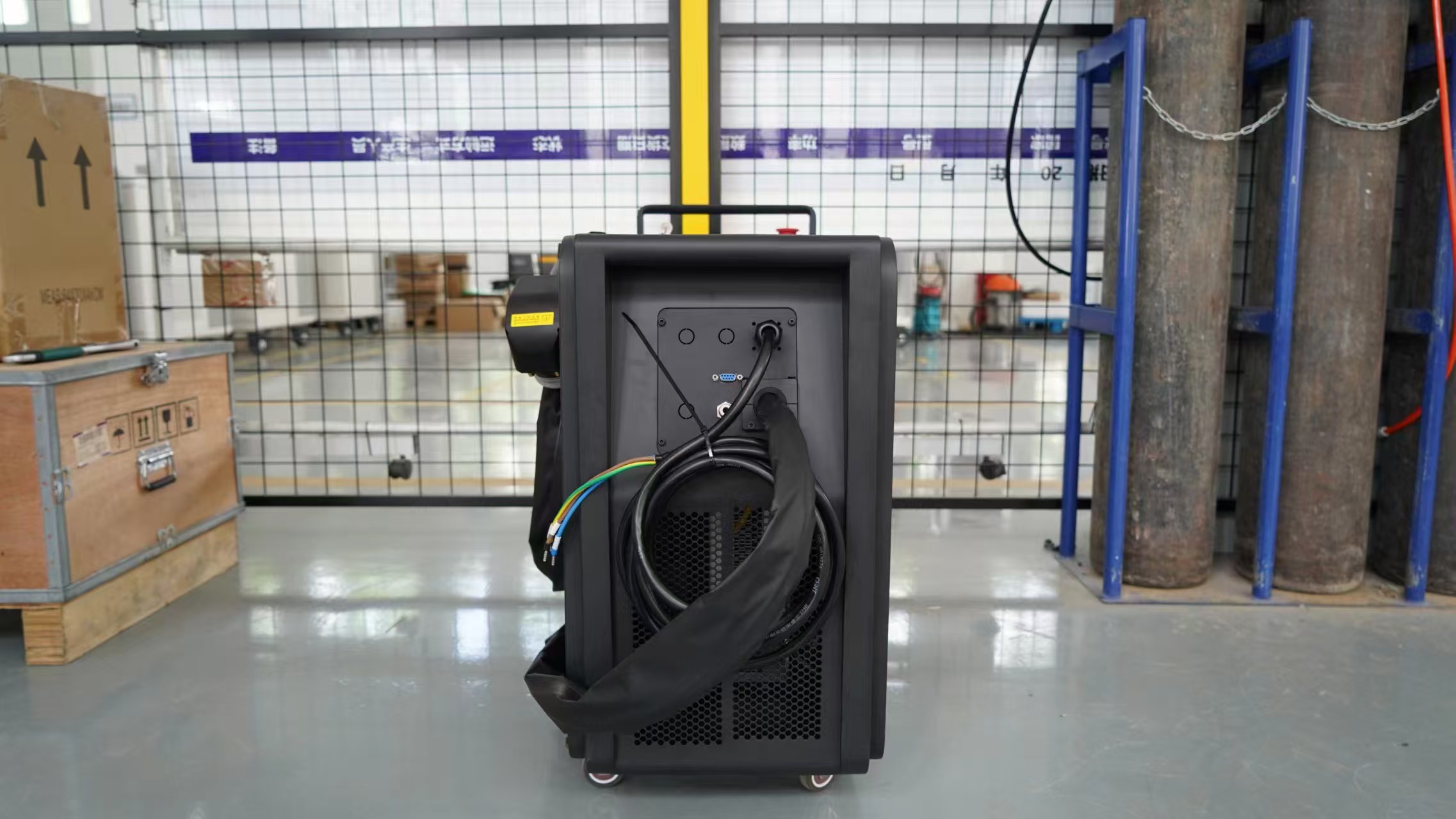

2KW Laser Cleaning Machine
1. Introduction of the 2KW laser cleanning machines
Laser cleaning technology is a novel industrial surface treatment technology that uses a high-energy laser beam to remove contaminants, oxide layers, coatings, and rust from material surfaces without damaging the substrate. Compared to traditional mechanical grinding, chemical cleaning, and sandblasting methods, laser cleaning offers significant advantages such as environmental friendliness, non-contact operation, high precision, and strong controllability, and is widely used in aerospace, automotive manufacturing, rail transportation, precision electronics manufacturing, and cultural heritage restoration.
This article will delve into the working principle, core advantages, market applications, purchasing guide, and future development trends of laser cleaning machines, helping readers gain a comprehensive understanding of this revolutionary technology.
2. Working Principle of Laser Cleaning Machines
2.1 Principle of Laser-Matter Interaction
The core of laser cleaning lies in the interaction between the laser and the material surface, primarily achieved through the following mechanisms:
Photothermal Effect (Thermal Ablation)
The laser beam (usually a pulsed fiber laser) irradiates the material surface, instantly generating high temperatures, causing contaminants (oil, paint, oxides, etc.) to thermally expand or vaporize.
Suitable for organic materials (paints, rubber), but not suitable for heat-sensitive materials (such as plastics, electronic components).
Photochemical Action (Photodecomposition)
For certain polymer materials (such as adhesives, coatings), the laser can break their chemical bonds, causing them to decompose into smaller molecules that escape.
Suitable for cleaning precision electronic components to reduce the heat impact.
Laser Stripping (Plasma Shockwave)
High-energy laser irradiation evaporates some contaminants, forming micro-plasma, which generates shock waves that peel off the residue.
Suitable for highly adhesive contaminants (such as scale, heavy rust).
2.2 Core Components of the Laser Cleaning Machine
The laser cleaning machine typically consists of the following core components:
Components | Functions | Key Technologies |
Fiber Laser | Provide high-energy laser beams | Pulsed/continuous fiber lasers, power 100W-1000W |
Galvanometer system（Galvo Scanner） | High-speed and precise control of laser path | High dynamic range galvanometer, repeatability <0.01mm |
control system（PLC/PC） | Set cleaning parameters | Intelligent focusing, adaptive power control |
Dust extraction and purification device（Fume Extraction） | Collecting laser-evaporated pollutants | HEPA filtration + activated carbon adsorption |
3. Advantages of laser cleaning machines (comparison with traditional cleaning methods)
Cleaning method | Laser cleaning | Sandblasting | Chemical cleaning | Ultrasonic cleaning |
efficiency | High（Automatable） | Middle | Low（Soaking required） | Low |
Scope of application | Almost all substrates (metals, glass, composite materials) | hard materials | Specific materials | Small precision parts |
Environmental protection | Pollution-free | ❌（dust pollution） | ❌（Chemical waste liquid） | ❌（wastewater） |
Substrate damage | NON | Possible scratches | Corrosion risk | NON |
4. Typical Application Industries of Laser Cleaning Machines
1) Aerospace
Aircraft skin paint removal (replaces chemical peeling, reducing the risk of aluminum alloy corrosion)
Engine blade oxide layer removal (improves the adhesion of thermal barrier coatings)
2) Automotive Manufacturing
Metal surface pretreatment before welding (removes oil and oxide layers, improving welding quality)
Brake disc rust removal (restores performance, extends lifespan)
3)Rail Transportation
High-speed rail body rust removal (replaces traditional sandblasting, avoiding dust generation)
Wheelset axle laser cleaning (achieves in-situ repair, reducing maintenance time)
4) Electronics Industry
PCB solder pad cleaning (removes flux residue, improving welding yield)
Chip packaging pretreatment (removes microscopic contaminants, enhances adhesion)
5) Cultural Heritage Restoration
Ancient building stone black stain removal (precisely removes millennia-old stains without damaging cultural relics)
Metal cultural relic rust removal (avoids mechanical damage)
5. Future Development Trends of Laser Cleaning
Intelligentization ➔ AI automatically identifies stain types and adjusts parameters
Higher Power + Smaller Size ➔ Portable kilowatt-level equipment
Green Manufacturing Integration ➔ Collaborative applications with 3D printing and laser welding
Cost Reduction ➔ Advances in domestic laser technology promote widespread adoption
Conclusion of the Laser cleaning machine:
Laser cleaning technology is gradually replacing traditional cleaning processes and becoming a standard feature in high-end manufacturing. Whether it's metal rust removal, precision electronics processing, or cultural heritage restoration, it provides more efficient and environmentally friendly solutions. With technological iteration, the application scenarios of laser cleaning will further expand, providing more possibilities for the Industry 4.0 era.
