The BAOKUN handheld laser cleaning machine adopts cutting‑edge fiber laser cleaning technology, bringing higher efficiency, easier operation and outstanding safety compared with conventional industrial cleaning solutions. It serves as an ideal alternative to traditional cleaning processes for a wide range of metal substrates, including stainless steel, aluminum, carbon steel, galvanized steel, copper and other highly‑reflective materials. Requiring no mechanical grinding or post‑processing work after cleaning completion, this unit performs reliably even on delicate work piece surfaces.
Our laser cleaning machine is widely deployed across multiple industries to remove rust, paint, coating, oxide layers, oil, grease, carbon deposits and welding residues without damaging base materials.
- Rust & Corrosion Removal: Clean rust and oxidation layers on metal structural parts, steel frames, castings, molds and engineering components.
- Paint & Coating Stripping: Remove old paint, powder coating and protective layers from metal surfaces for re‑painting or refurbishment.
- Pre‑Weld & Post‑Weld Treatment: Eliminate oxide film, oil contamination and welding slag before and after welding to improve welding quality.
- Mold Maintenance: Clean rubber molds, injection molds and die‑casting molds without abrasion to extend mold service life.
- Heritage & Metal Restoration: Gentle surface cleaning for antique metal parts, artworks and cultural relic restoration.
- Automotive Industry: Clean auto frames, chassis components and spare‑part surfaces for refurbishment and pre‑treatment.
- Shipbuilding & Heavy Machinery: Remove rust, marine coatings and contaminants from ship hull parts, heavy‑duty equipment and engineering machinery.
- Electronics & Precision Parts: Degrease and de‑oxidize precision metal components, conductive parts and high‑reflective workpieces.
Equipped with the BAOKUN 4.0 2000 W handheld laser cleaning system and SUP22C oscillating laser cleaning head, this machine integrates self‑developed control software with premium‑grade core components for consistent and stable cleaning performance.
- Rated power: 2000W
- Laser cleaning head model: SUP22C handheld wobble scanning head (max compatible power up to 3000 W)
- Cleaning head weight: 0.7 kg, lightweight and ergonomic for long‑time handheld operation
- Supported focal lengths: 400 mm / 600 mm / 800 mm
- Adjustable scanning width: 0‑150 mm (F400); 0‑225 mm (F600); 0‑300 mm (F800)
- Cooling method: Water cooling
- Working power supply: 220V±10% AC, 50/60Hz
- Overall machine dimension: L980 × W480 × H790 mm
✅ Premium‑quality reliable components
All key parts are sourced from trusted manufacturers. The proprietary wobble oscillating laser head with electric lens control guarantees high‑precision cleaning work. The full‑set control system monitors real‑time equipment status to prevent unexpected faults and simplify troubleshooting.
✅ Enhanced operational safety & environmental‑friendly design
Multiple built‑in safety alarms and active emergency power‑off functions are embedded inside the control system. The unique air‑knife structure effectively protects optical lenses from contamination. Laser cleaning produces no chemical waste, creating a healthier working environment for operators.
✅ High‑precision & uniform cleaning results
The oscillating wobble scanning head delivers even cleaning performance. End‑point optimization function eliminates uneven light output on both ends of cleaning tracks. Process parameters are highly repeatable to secure stable cleaning quality for batch production. No secondary polishing or post‑treatment is needed after cleaning.

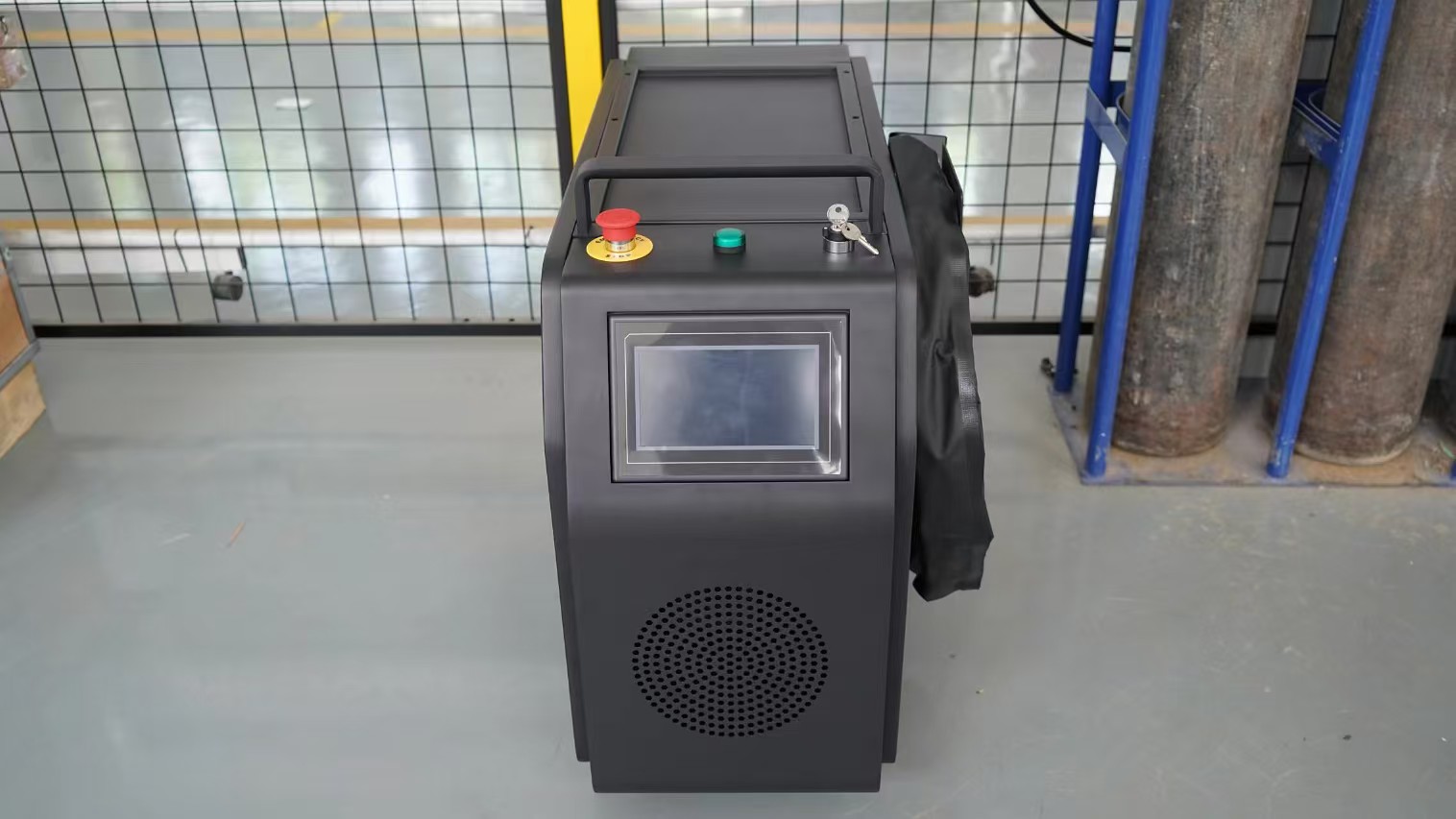

✅ Intuitive multi‑language touch‑screen control
The color touch‑screen control panel supports full‑parameter adjustment. Operators can save and recall custom cleaning process presets for different materials and working scenarios. Multi‑language options are available: Simplified Chinese, Traditional Chinese, English, Japanese, Korean, Russian, German, French and more. Users can also disable wobble oscillation mode for dot‑ or line‑type laser output as required.
✅ Wide working adaptability
Working temperature ranges from ‑10℃ to 50℃ with maximum working humidity below 70%. Compatible with various mainstream fiber laser sources, suitable for diverse on‑site industrial cleaning jobs.
