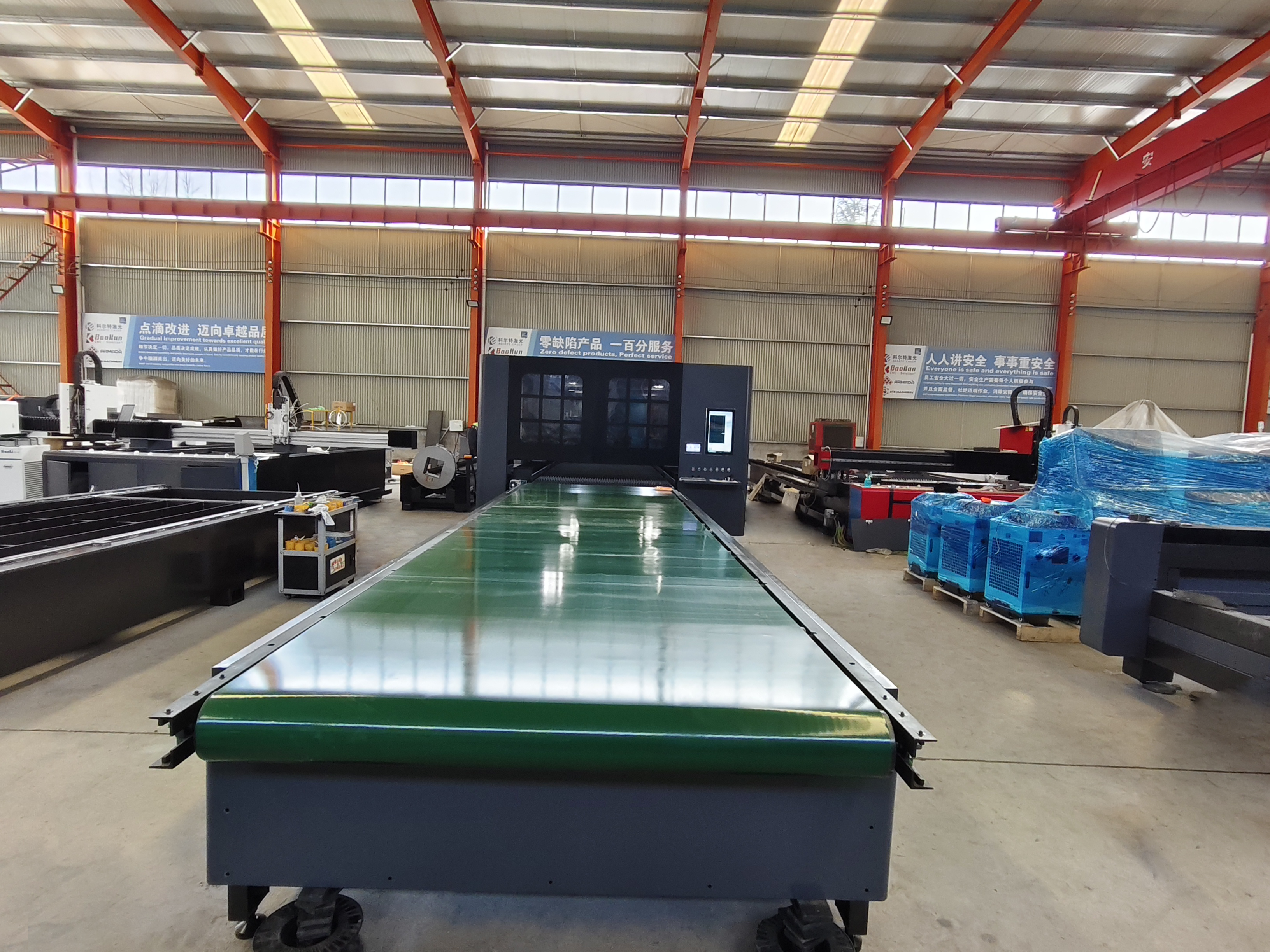

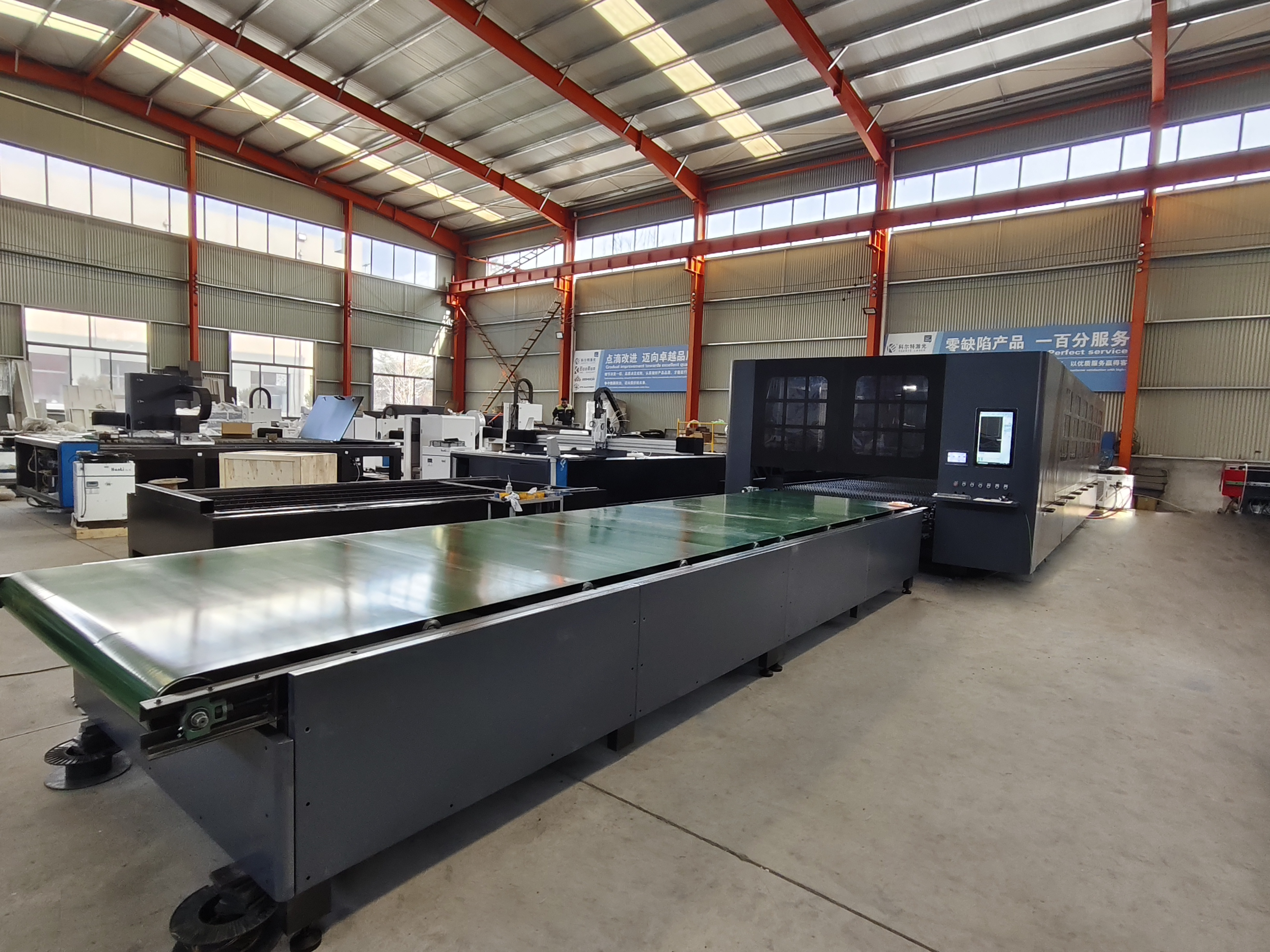

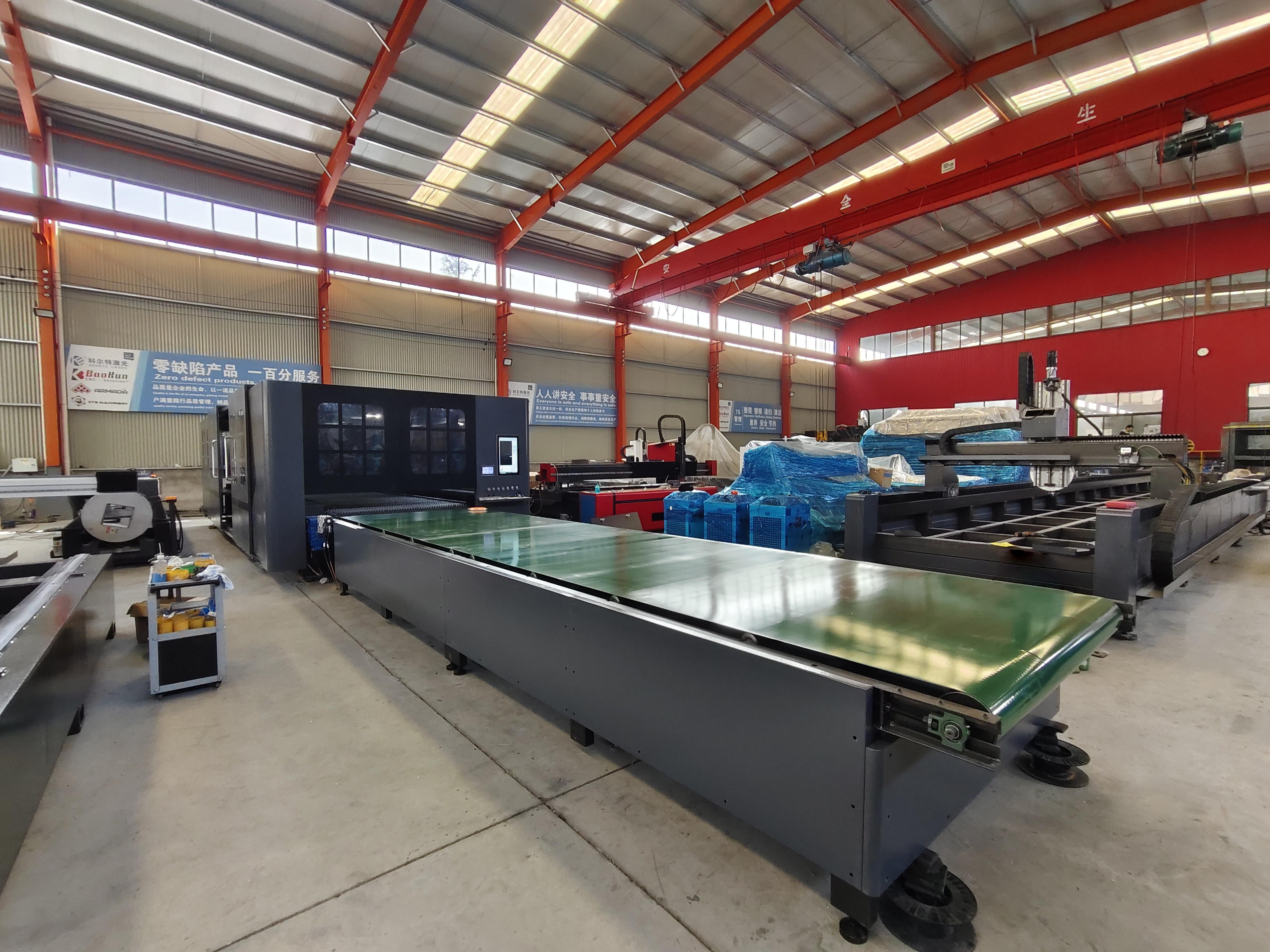

6015-3KW Laser Blanking Line: Redefining Efficiency and Precision in Metal Blanking
Amidst the wave of transformation driving the metal processing industry toward greater intelligence and flexibility, the inherent pain points of traditional stamping—such as high mold costs, lengthy mold changeover cycles, and significant material waste—have become increasingly pronounced. At its core, the 6015-3KW Laser Blanking Line leverages a combination of continuous coil processing and mold-free laser cutting. By integrating cutting-edge technologies—including dynamic slit tracking, intelligent nesting, and end-to-end automation—it delivers a comprehensive, one-stop blanking solution for sectors such as automotive, home appliances, elevators, and general sheet metal fabrication. It has emerged as a pivotal piece of equipment, enabling enterprises to reduce costs, boost efficiency, and secure a competitive edge in the market.
I. Laser Cutting Machine: Core Technical Specifications—Comprehensive Leadership from Hardware to Process

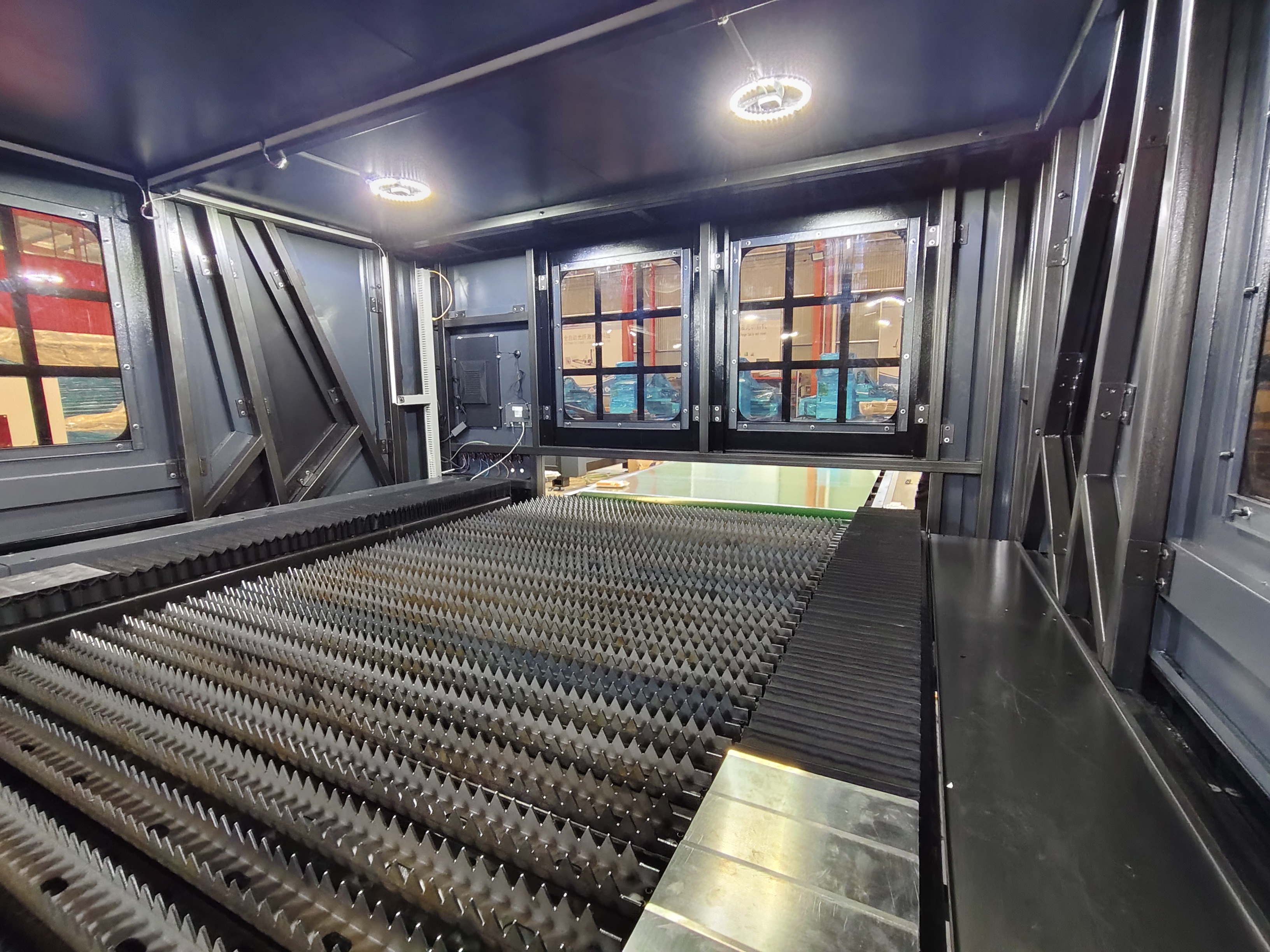

1. Ultra-Large Processing Format: A standard working area of 6000mm × 1500mm accommodates 6-meter-long coil materials for single-pass blanking. This eliminates splicing errors and perfectly meets the processing demands for long strip-shaped parts and large-format sheet metal components.
2. 3kW Fiber Laser Source:Delivers a stable output of high-energy laser beams, capable of cutting a wide variety of materials—including 1–16mm carbon steel, 1–10mm stainless steel, and aluminum alloys. It strikes an optimal balance between high-speed processing of thin sheets and precision cutting of medium-to-thick plates.

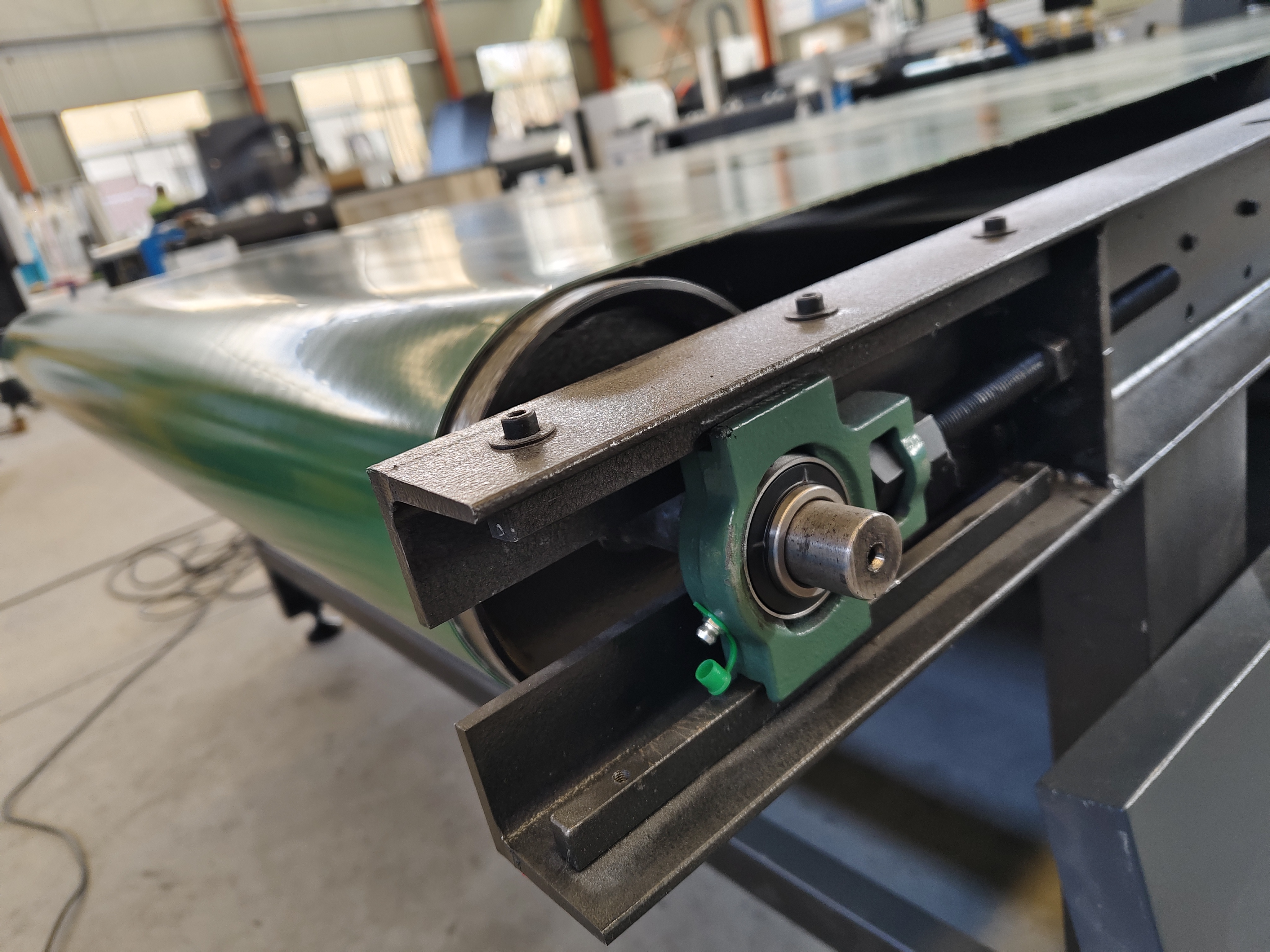

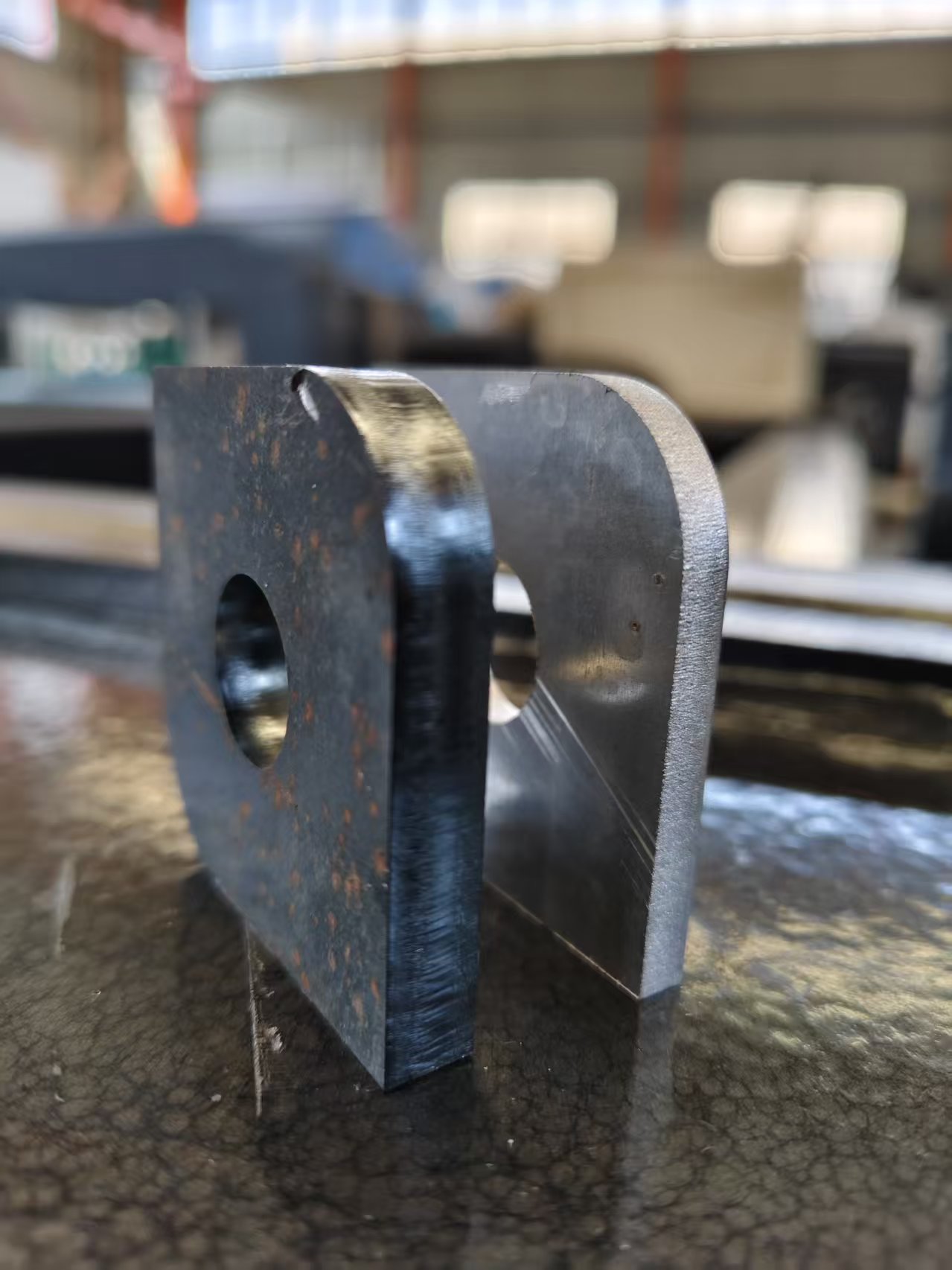

3. Follow-up Support System: A dynamic belt support system moves synchronously with the cutting head, creating an unobstructed cutting gap within the processing zone. This enables "damage-free blanking"—ensuring the surface of the cut parts remains scratch-free and the edges are free of burrs, allowing them to proceed directly to the next stage of production without the need for secondary grinding.
4. Fully Automated Workflow:Integrates the entire production chain—from uncoiling, leveling, and feeding to cutting, sorting, and scrap collection. Once the coil material is loaded, the system operates without the need for manual intervention, enabling 24-hour continuous operation and boosting production efficiency by 3 to 5 times compared to traditional processes.
II. Core Advantages of the Laser Blanking Line: Key Capabilities for Resolving Industry Pain Points
1. Mold-Free Flexible Production of the fiber laser cutting machine : Completely eliminates reliance on molds; product profiles can be switched simply by importing CAD drawings. New product setup time is reduced to under one hour, making it perfectly suited for small-batch, multi-batch, and customized orders.
2. Maximized Material Utilization of the laser cutting machine: Intelligent nesting software optimizes layout to enable "zero-bridge" cutting (cutting without connecting bridges). This boosts material utilization by 5%–10% compared to traditional stamping blanking, potentially saving hundreds of thousands of RMB in raw material costs per production line annually.

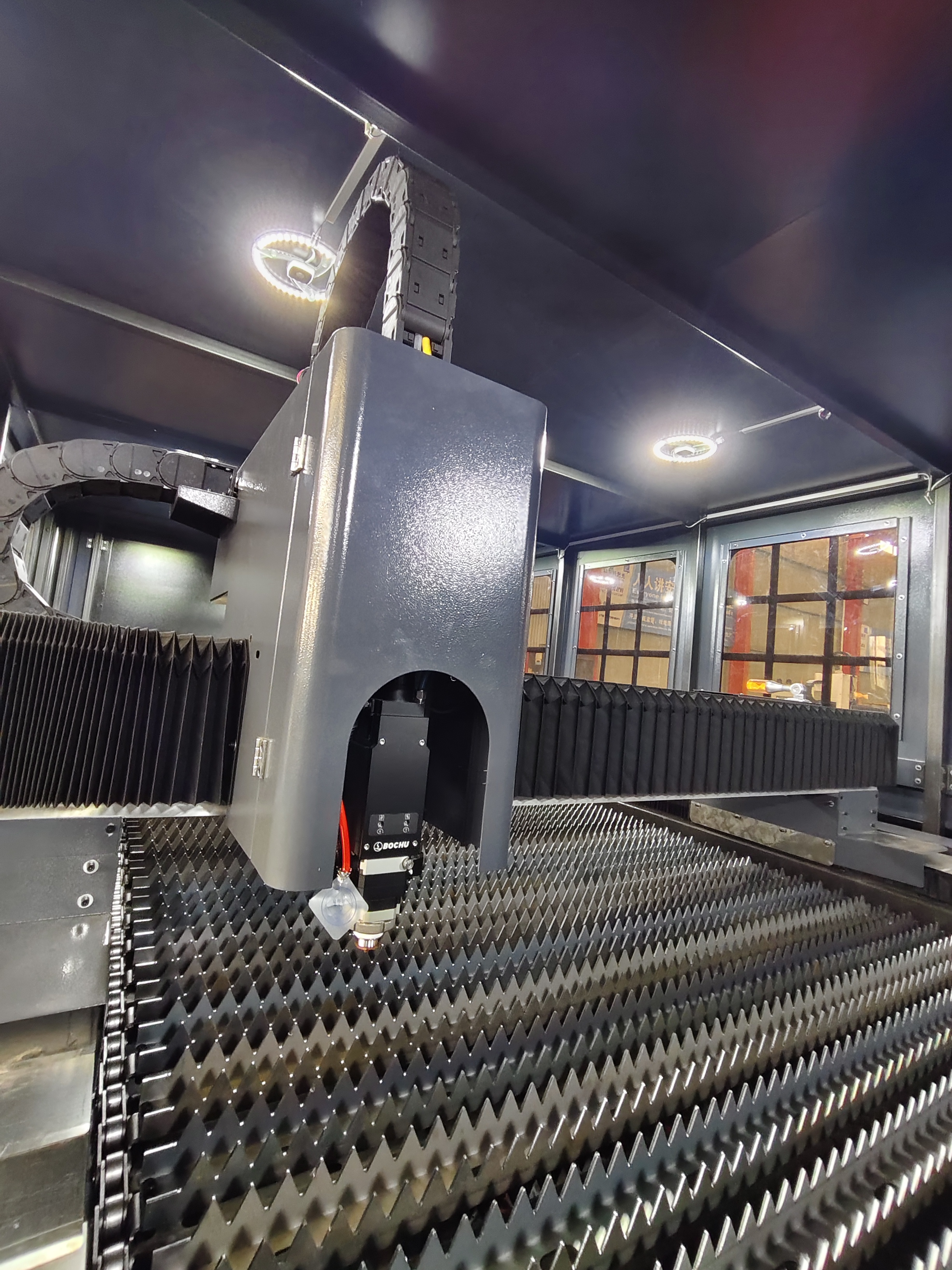

3. The laser cutting machine is High-Precision, Stable Output: Features a dual-motor rack-and-pinion drive system combined with an aviation-grade aluminum gantry beam. With a positioning speed of up to 80 m/min and a repeat positioning accuracy of ±0.02 mm, it ensures dimensional consistency across mass-produced blanked parts, thereby eliminating losses due to defective products.
4. The laser cutting machine has Digital & Intelligent Control: Integrates centralized PLC control with a remote monitoring system to collect real-time data on production output, energy consumption, and equipment status. It can seamlessly integrate with MES systems, enabling full-process production traceability and assisting enterprises in building smart factories.
III. Application Scenarios for Laser Cutting Machines: Meeting Blanking Needs Across Multiple Industries
• Automotive Manufacturing: Ideal for blanking interior and exterior sheet metal components as well as lightweight aluminum alloy parts. Its non-damaging cutting process prevents aluminum chip residue, enabling an annual production capacity reaching the million-unit level.
• Home Appliances & Kitchenware: Suitable for blanking the casings of refrigerators, rice cookers, and irregularly shaped accessories. The resulting cuts are smooth and flat, directly meeting the aesthetic standards required for decorative-grade finishes.
• Elevator Decoration: Enables the custom blanking of patterned panels for elevator cabs and landing doors. It allows for rapid response to personalized design requirements without the need for expensive mold fabrication.
• General Sheet Metal: Used for blanking parts such as equipment enclosures, cabinets, and advertising signage. It can process 6-meter-long metal sheets in a single pass, thereby enhancing the structural integrity and stability of the final products.
IV. Service and Value: Empowering Enterprise Development Across the Entire Lifecycle
We provide comprehensive, end-to-end services—ranging from solution design, installation, and commissioning to after-sales maintenance. Our professional team customizes capacity solutions, provides on-site training for operators, and offers 24-hour responsiveness to after-sales inquiries, thereby ensuring the stable and reliable operation of the equipment. From a long-term perspective, the 6015-3KW Laser Blanking Line enables enterprises to reduce labor costs by 70% and maintenance costs by 50%, with a return on investment typically achieved within 1 to 2 years. It stands as the optimal choice for metal processing enterprises seeking to undergo transformation and upgrading.
