Laser Cutting System for H-Beam Production Line: Advanced Technology for Precision Manufacturing
1. Introduction of the Laser H-beam production Line:
Laser cutting has revolutionized metal fabrication, offering unparalleled precision, speed, and flexibility—especially in processing H-beams (I-beams/welded girders). A laser cutting system integrated into an H-beam production line enhances efficiency by eliminating secondary processing steps while ensuring clean, burr-free cuts, high repeatability, and minimal material waste.
This article explores laser cutting applications in H-beam production, covering technology advantages, system components, automation integration, cutting techniques, quality control, and industrial use cases.
2. Key Advantages of Laser Cutting in H-Beam Processing
Compared to traditional methods (plasma cutting, oxy-fuel, sawing), laser cutting excels in:
✅ Ultra-Precision (±0.1mm tolerance) – Ideal for intricate holes, slots, and contour cuts.
✅ No Physical Tool Wear – Non-contact process reduces maintenance costs.
✅ High Speed (Up to 20m/min) – Faster than mechanical sawing/plasma for thin-to-medium thicknesses (up to 25mm).
✅ Minimal Heat Distortion – Fiber lasers produce narrow kerf widths (<0.2mm), preserving structural integrity.
✅ Automation Compatibility – Easily integrated with CNC controls, robotics, and Industry 4.0 systems.
3. Components of an H-Beam Laser Cutting Production Line
① Laser Source
Fiber Lasers Max Brand(1kW–30kW) – Most common for H-beams due to energy efficiency (30% wall-plug) and high cutting speeds.
② Cutting Head & Nozzle System
Auto-Focus Cutting Heads – Adjusts focal distance dynamically for uneven surfaces.
High-Pressure Assist Gas (O₂/N₂/air) – Optimizes cutting quality (O₂ for carbon steel; N₂ for oxidation-free stainless/H-beams).
③ Beam Positioning & Motion System
Gantry/Cantilever CNC Systems – Large-format movement for beams up to 18m+ long.
Rotary Axis (H-Beam Turners) – Allows 360° cutting on flanges/web without repositioning.
④ Material Handling & Automation
Loading/Unloading Robots – Transfer raw H-beams to/from storage racks.
Conveyor Systems – Minimize manual intervention for high-volume production.
⑤ Control Software & Monitoring
CAD/CAM Integration – Converts DXF/DWG files to optimized cutting paths.
Real-Time Process Monitoring – Detects deviations (focus shifts, gas pressure drops).
4. Cutting Techniques for H-Beams Lasers
① Straight & Bevel laser Cutting
Perpendicular Cuts – Clean squares for weld prep or structural connections.
Angled Bevels (Up to 45°) – Prepares H-beams for seam welding, improving joint strength.

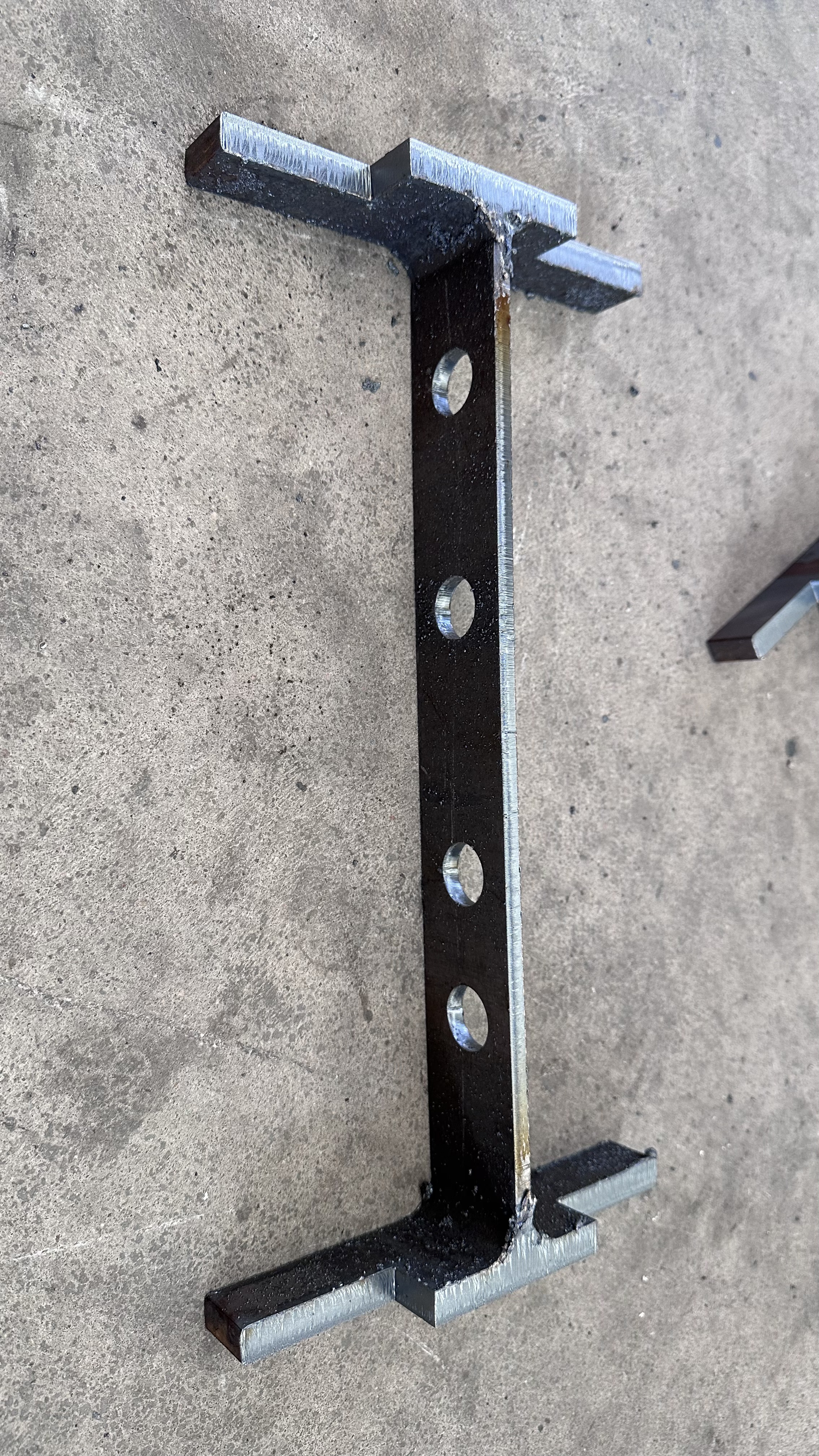

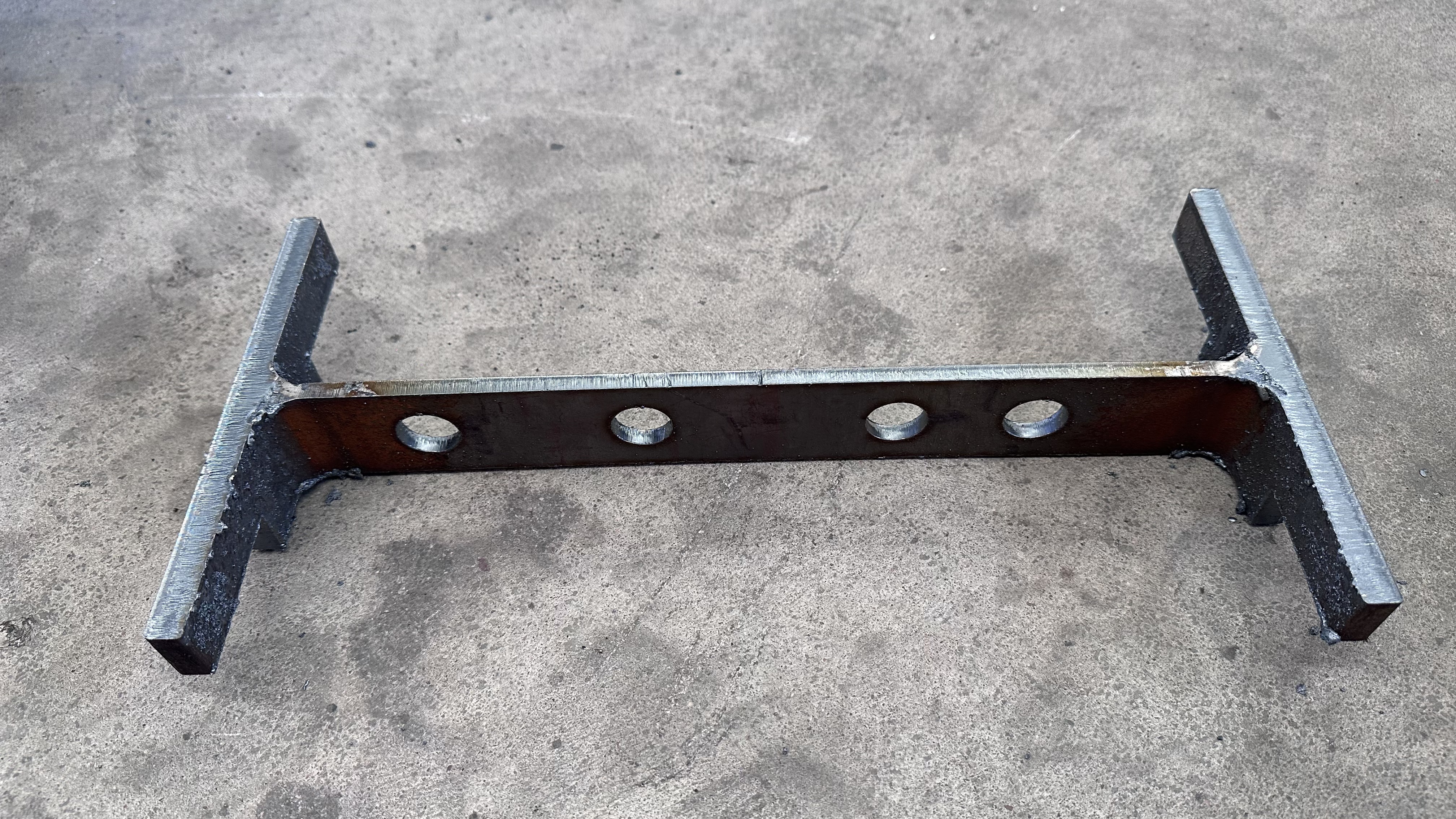

② Hole Drilling & Slotting
Bolt Holes, Ventilation Slots – Laser-drilled holes (10mm–100mm Ø) eliminate post-drilling steps.
③ Contour Cutting & Notching
Fishmouth/Joggle Notches – Precision cuts for tubular connections (e.g., trusses, offshore platforms).
④ Marking & Engraving
QR Codes/Part IDs – Direct laser marking ensures traceability.
5. Quality Control & Standards Compliance of the H beam Laser cutting machine
Dimensional Accuracy – Laser profilometers verify cut angles/lengths (±0.1mm).
Edge Quality – Smooth edges (Ra <12.5µm) reduce post-processing needs.
NDT Compatibility – Clean cuts allow seamless ultrasonic testing (UT) for defects.
6. Industry Applications of the H beam Laser cutting machine
Steel Construction – High-rise buildings, bridges (cut-to-length + drilling in one step).
Shipbuilding – Precision-cut H-beams for hull framing.
Heavy Machinery – Mining equipment, crane booms with complex cutouts.
7. Future Trends & Smart Manufacturing of the H beam Laser cutting machine
AI-Powered Optimization – Adaptive cutting paths based on real-time scan data.
Hybrid Systems – Combine laser cutting + robotic welding for fully automated H-beam fabrication.
Energy-Efficient Lasers – Next-gen fiber lasers reduce kW consumption per meter cut.
Conclusion
Laser cutting transforms H-beam production by reducing labor, enhancing accuracy, and enabling complex geometries. Integrating laser systems into existing lines unlocks faster ROI, leaner workflows, and superior part quality.
