Fiber laser cutting has emerged as one of the most advanced and efficient technologies for precision cutting of various materials, particularly metals. The laser cutting process involves the use of a highly focused laser beam to cut or engrave materials. Fiber lasers, specifically, are known for their high precision, speed, and ability to handle tough materials, making them a top choice for metal cutting applications. In this article, we will explore whether fiber lasers can cut metal, the range of materials they can cut, and the limitations and benefits of fiber laser cutting in metalworking.
Yes, fiber lasers can cut metal. In fact, fiber lasers are one of the most effective and widely used methods for cutting metals, particularly thin to medium thickness metals. Fiber lasers operate by generating a beam of light that is highly concentrated and directed at the material surface. The intense heat of the laser beam melts the material, and an assist gas (such as oxygen, nitrogen, or air) is often used to blow the molten material away, leaving a clean and precise cut.
One of the reasons fiber lasers are so effective in cutting metals is their high energy efficiency. Unlike traditional CO2 lasers, fiber lasers have a much higher power conversion rate, meaning they can generate more concentrated heat while using less energy. This makes them suitable for cutting a variety of metal materials, including stainless steel, aluminum, mild steel, titanium, and copper.

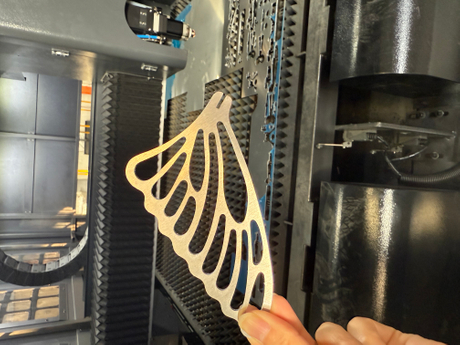

Fiber lasers are known for their excellent cutting quality. They create smooth, precise edges with minimal heat-affected zones, which reduces the need for post-cutting processes such as polishing or grinding. Additionally, fiber lasers can cut complex shapes with tight tolerances, making them ideal for industries like aerospace, automotive, and medical devices, where precision is critical.
The thickness of steel that a fiber laser can cut depends on several factors, including the power of the laser, the type of steel being cut, and the cutting parameters. In general, fiber lasers can cut steel with thicknesses ranging from thin sheets (as thin as 0.1 mm) to medium and thicker plates (up to 25 mm or more).
For example:
Thin Steel (Up to 5 mm): Fiber lasers are highly effective at cutting thin steel. They can achieve fast cutting speeds with a high degree of accuracy. This makes them ideal for cutting parts like sheet metal or small components.
Medium Thickness Steel (5 mm to 12 mm): Fiber lasers can handle medium thickness steel with good cutting speeds. The cutting quality remains high, with minimal heat distortion and dross (molten material residues) on the cut edges.
Thicker Steel (12 mm to 25 mm): Fiber lasers can still cut thicker steel, but the cutting process becomes slower, and more energy is required to maintain a clean cut. High-power fiber lasers (typically above 3 kW) are needed for cutting steel beyond 12 mm, and cutting speeds are slower than for thinner materials.
While fiber lasers can cut thicker steel, the material’s surface quality and the cutting speed may be compromised when dealing with high thicknesses. For extremely thick steel (above 25 mm), other methods such as plasma or oxy-fuel cutting might be more efficient, as fiber lasers may struggle with high-power requirements and slower cutting speeds.

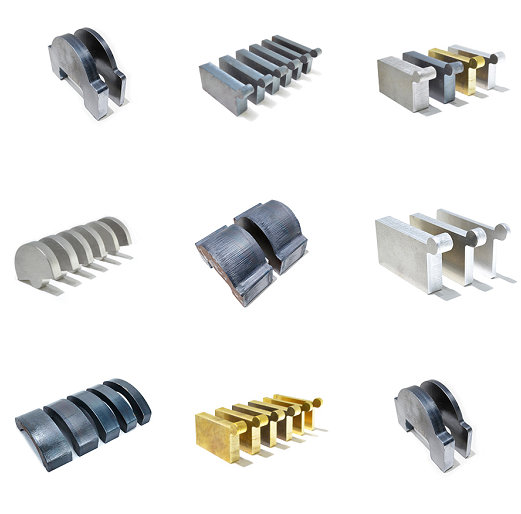

Fiber lasers are not limited to cutting steel. Their versatility allows them to cut a wide range of metals and other materials, including:
Fiber lasers are excellent at cutting aluminum, thanks to their ability to handle materials with low reflectivity. Aluminum can be more difficult to cut with traditional lasers due to its reflective surface, but fiber lasers overcome this challenge with greater efficiency. They provide smooth cuts and minimal distortion, making them ideal for industries that require precise aluminum components, such as automotive and aerospace.
Stainless steel is one of the most commonly cut metals with fiber lasers. Fiber lasers can cut stainless steel with ease, delivering high precision and minimal heat distortion. Stainless steel is often used in applications such as kitchenware, medical instruments, and structural components, and fiber lasers are capable of cutting it with minimal edge roughness.
Titanium is another metal that fiber lasers can effectively cut. Its high melting point and heat resistance make it difficult to process using conventional methods, but fiber lasers can achieve precise cuts, making them useful for industries such as aerospace and medical device manufacturing, where titanium parts are common.
While copper has high reflectivity, fiber lasers can still cut it efficiently, especially with the use of high-powered systems. The fiber laser’s small focal spot size allows for better control over the cutting process, enabling it to work with copper sheets and components for electronics and electrical applications.
Fiber lasers can also cut brass, providing clean, precise edges. Brass is often used in electrical and decorative applications, and fiber lasers offer a high level of precision when cutting this material.
Nickel alloys, including those used in aerospace and high-performance applications, can be effectively cut by fiber lasers. The process maintains the integrity of the alloy without causing excessive heat damage or distortion.
While fiber lasers are primarily designed for cutting metals, they can also be used to cut certain plastics and composite materials. The ability to cut materials like acrylic, polycarbonate, and fiberglass makes fiber lasers versatile tools in industries like signage, automotive, and electronics.
Fiber lasers are particularly effective for thin and medium-thickness materials. For thicker or harder-to-cut materials, other laser technologies (such as CO2 lasers) may be more suitable.
Fiber laser cutting is an advanced and highly effective method for cutting metals, offering numerous benefits including high precision, speed, and energy efficiency. Whether you're working with steel, aluminum, titanium, or other metals, fiber lasers are capable of producing clean, precise cuts with minimal heat distortion. Although fiber lasers can cut materials of varying thicknesses, the cutting speed and quality may decrease for very thick metals.
The ability of fiber lasers to cut a wide range of metals, alloys, and even some plastics makes them a versatile choice for industries ranging from aerospace to automotive to medical device manufacturing. As technology continues to improve, fiber laser cutting will likely become even more efficient, broadening its applications and making it an even more valuable tool in metalworking and manufacturing.
Fiber laser cutting uses a highly focused laser beam to cut or engrave materials. The fiber laser generates a concentrated beam of light that melts or vaporizes the material, creating precise cuts. It is a preferred choice for cutting metals due to its energy efficiency and precision.
Yes, fiber lasers are very effective at cutting stainless steel. They provide high precision and clean edges, making them ideal for stainless steel components used in various industries.
Fiber lasers can cut materials of varying thicknesses, depending on the power of the laser. They can cut thin sheets (as thin as 0.1 mm) and thicker plates (up to 25 mm or more) of metals like steel, aluminum, and titanium. For thicker materials, higher-powered lasers are required.
Yes, fiber lasers are generally more efficient than CO2 lasers. They have a higher power conversion rate, which means they use less energy to generate the same amount of heat, making them more energy-efficient and cost-effective for cutting metals.
While fiber lasers are primarily designed for metal cutting, they can also cut certain non-metal materials such as plastics and composites. However, their performance on these materials may vary depending on the material's properties and thickness.
