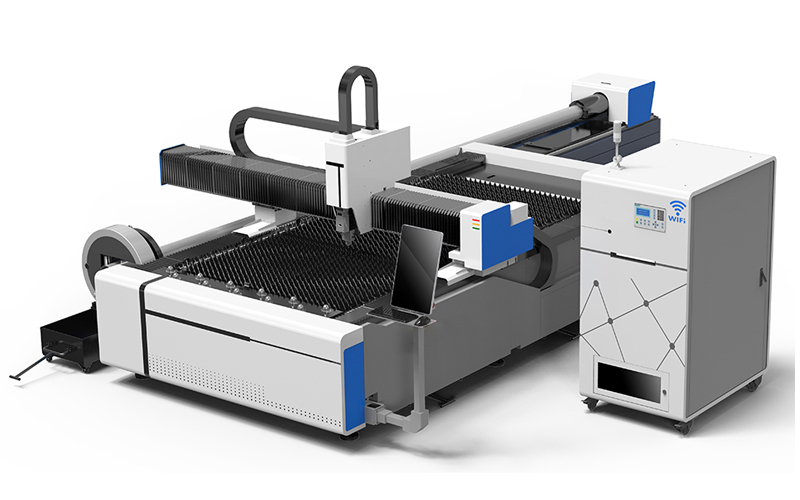

1530-6KW 220 chuck 6m tube length laser cutting machine - all-round high-precision processing solution
1. Product Overview of the fiber laser cutting machine:
Model: 1530-6KW 220 chuck 6m tube length laser cutting machine
Application fields: metal tube/plate processing, automotive parts manufacturing, engineering machinery, steel structure, aerospace and other high-precision industries
Core features: 6kW ultra-high power fiber laser, 220mm large chuck compatibility, 6m ultra-long tube processing, intelligent adaptive cutting system
This model breaks through the limitations of traditional laser cutting equipment and reaches the industry-leading level in processing range, precision, efficiency and automation.
2. Core parameters and technical advantages of the 6KW laser cutting machine
(1) High-power laser source (6kW fiber)
Efficient cutting capability: 6kW fiber laser can easily cut carbon steel (0.5-30mm), stainless steel (0.5-25mm), aluminum/copper alloy (0.5-20mm), greatly improving the efficiency of thick plate cutting. Energy optimization technology: The original dynamic spot adjustment (DFS) system can automatically optimize the beam quality according to the material thickness, reduce slag and improve the cross-section finish.
(2) 220mm chuck + 6-meter extra-long pipe processing
Excellent compatibility: The 220mm large-diameter chuck can stably clamp round pipes (Ø15-220mm), square pipes (10×10mm~200×200mm), special-shaped pipes, etc., without the need for frequent fixture replacement. Extra-long pipe support: 6-meter standard pipe length (customizable 8-12-meter version), meeting the integrated processing requirements of large structural parts (such as bridge supports and robotic arm frames).

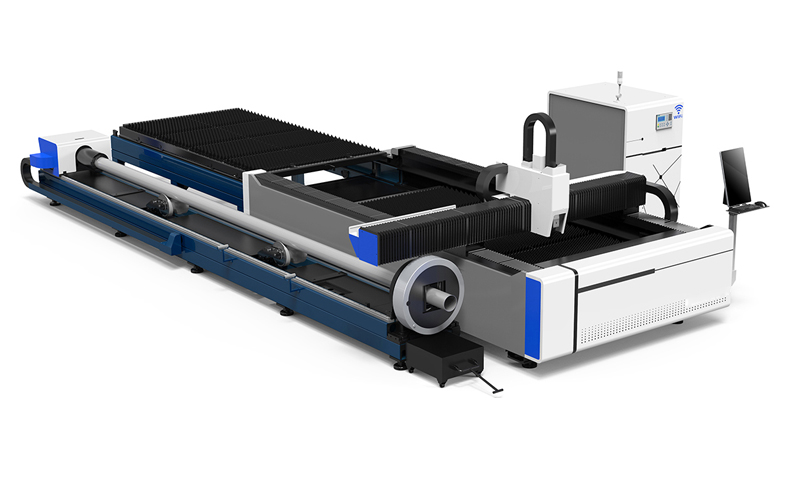

(3) Combined cutting mode (smart switching of plate + pipe) Multi-scenario coverage:
The same device supports flat plate cutting (1530 format) and pipe cutting, reducing downtime by automatically switching the workbench. Intelligent recognition system: Equipped with AI visual positioning, it can automatically identify the position of pipes/plates and adjust the cutting path, with an error compensation accuracy of ≤0.03mm.
3. Unique structural design and performance highlights of the fiber laser cutting machine
(1) Heavy-duty machine tool structure
High-rigidity machine body: One-piece welded bed (δ=25mm steel plate) + linear guide/gear rack drive to ensure stability under high-speed cutting (120m/min) and repeatable positioning accuracy of ±0.02mm.
Anti-interference design: Fully enclosed protective structure (IP54 grade) blocks dust and metal splashes, extending the life of optical components.
(2) Intelligent cutting head and adaptive system
Dual temperature control cutting head: Built-in water cooling + air cooling system to ensure 6kW high power continuous output and prevent lens overheating and deformation.
Real-time height tracking (Z-axis Auto Focus): ±5mm adaptive floating range to deal with problems such as pipe bending or uneven plate.
(3) Automation Upgrade Options
Optional automatic loader: Linked with AGV/robotic arm, it can realize the unmanned process of automatic grabbing, centering and cutting of pipes.
ERP/MES docking: Supports cloud management of production data and real-time monitoring of equipment status and energy consumption.
4. Comparison of industry application scenarios
Application Areas: | Traditional Equipment Pain Points: | 1530-6KW Solutions
|
Automotive Exhaust Pipes | Multiple Splicing Processes Difficult to Ensure Precision | One-Piece Cutting Reduces Welding Deformation |
Building Steel Structures | Relying on Plasma Cutting, Excessive Burrs. Laser Non-Contact Processing | Laser Non-Contact Processing:Burr-Free Cuts. |
Agricultural Machinery Parts | Low Processing Efficiency for Special-Shaped Pipes | 220 Chuck + 6-meter Length: Complex Parts Produced in One Step. |
5. Service and customization support of the laser cutting machine
Free process testing: Provides material trial cutting service and optimizes cutting parameters (gas pressure, speed, etc.).
Modular upgrade: Subsequent expansion of automatic marking, beveling cutting, 3D cutting and other functions.
Global service system: 48-hour response (domestic)/72-hour (overseas), providing remote diagnosis and direct delivery of spare parts.
Conclusion of the fiber laser cutting machine:
1530-6KW 220 chuck laser cutting machine has redefined the industry standard for integrated tube-sheet processing through the triple upgrade of high power, large compatibility and intelligent automation.
Its flexible configuration and stable performance are particularly suitable for users with medium and large batches and mixed production of multiple materials. If you need further technical solutions or case videos, please contact our engineering team.
