| Quantity: | |
|---|---|

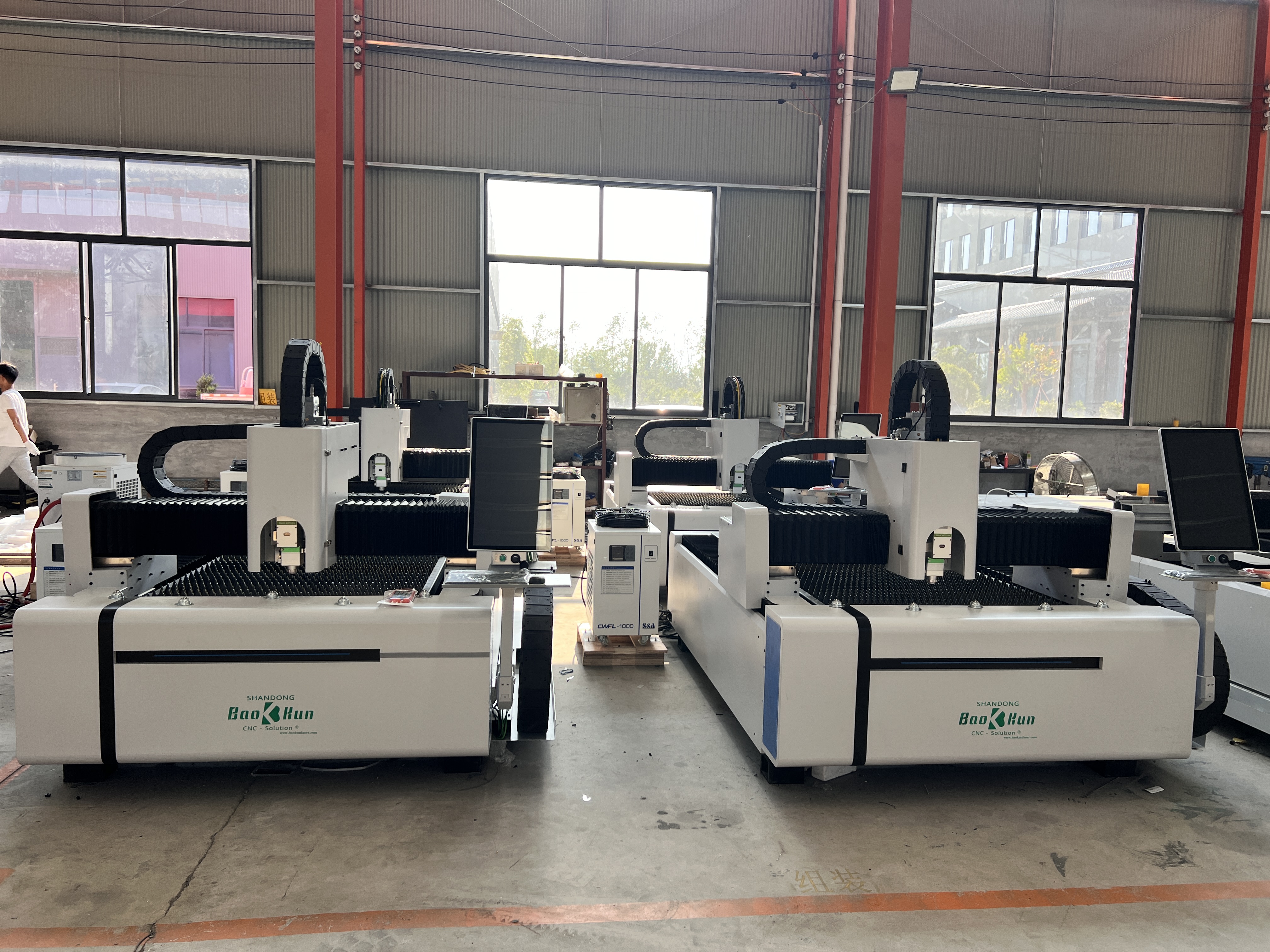

Fiber Laser Cutting Machine | |
Model | BKJ-1010/1325/3015/2040/2030/ |
Working area | 1500*3000mm |
Optional Working Area | 1500*3000mm, 2000*3000mm, 2000*4000mm, 2000*6000mm and Customized |
Configuration | Specifications |
Laser Generator | Max/Raycus/IPG |
Laser Cutting Head | Raytool/BLT |
CNC Controller | Cypcut |
Servo driver system | Delta/Fuji/Yaskawa |
Speed Reducer | MOTOVARIO Reducer |
Rack and Pinion: | Taiwan HIWIN guide rails |
Max.cutting speed | 0-30m/min(Depending on the material and thickness) |
X, Y, Z Axis Repeat PrecisionX, Y, Z Axis Repeat Precision | ≤±0.03mm /m |
Min line width | ≤0.15mm |
Maximum Empty Running Speed | 120m/min |
Driving way | Imported servo motor |
Transmission way | Y-axis import gear rack double driver, X-axis imported ball screw |
Cooling System | Hanli Industry Water Cooling |
Continuous working time | 24 Hours |
Power requirements | 220V/380V 1/3 Phases /50Hz or 60Hz |
Production Description
·Robust Heat-Treated Frame: Prevents deformation for lasting precision.
·High-Quality Imported Fiber Laser Source: Ensures superior cutting performance.
·Precision Linear Guide Drive System: Enables accurate and consistent cuts.
·High-Speed Servo Motors: Deliver fast and precise material processing.
·Automated Lubrication, Dust, and Fume Extraction: Maintains cleanliness and extends lifespan.
·Intuitive CNC Control: Simplifies custom cutting and programming.
·Energy-Efficient and Eco-Friendly Design: Reduces operational costs and environmental impact.
Premium Laser Head (Raytools or BOCI)
Choose from world-class brands renowned for their quality and reliability. Integrated dual water cooling maintains optimal lens temperature, preventing overheating and extending component lifespan. Protective lens shields critical components from damage.
High-Performance Laser Source (RAYCUS/MAX/Other)
Powered by leading Chinese manufacturers, these laser sources offer superior photoelectric conversion rates, resulting in precise processing, extended lifespan, and excellent overall performance. Enjoy a strong international reputation for quality and reliability.
Intuitive Control System
Our intelligent operating system provides precise control over laser power, frequency, and cutting speed, ensuring consistent and stable cutting performance. The user-friendly interface requires minimal operator training.
Robust Machine Bed
Constructed for exceptional rigidity through a high-temperature tempering process, eliminating internal stress and preventing deformation. This ensures consistently accurate and high-quality cuts to meet diverse customer needs.
Advanced Water Chiller
Equipped with top-of-the-line components from globally recognized brands, our efficient cooling system maintains optimal operating temperatures, ensuring reliable equipment performance and maximizing production efficiency.
Laser cutting machines can be used to cut large amounts of material with high precision and minimal time expenditure. The cut edges are very clean, so that post-processing is almost unnecessary, and the heat-affected zone is very narrow, so that structural changes are very small. The process is very flexible and there are hardly any restrictions on the geometries to be cut. The technology shows its greatest advantages with sheet materials with a thickness of less than 10 mm, so the development of increasingly powerful laser sources also makes economical cutting of increased thicknesses possible.
CNC laser cutting systems are used in many industries due to their diverse and flexible applications. Especially when high precision, speed, cost-effectiveness and flexibility in material processing are required and mainly thin material thicknesses are processed. This is the case in the automotive industry, for prototype construction or large-scale production, as well as in many other industries in the field of plant construction, curtain wall construction, shipbuilding and metal processing.
