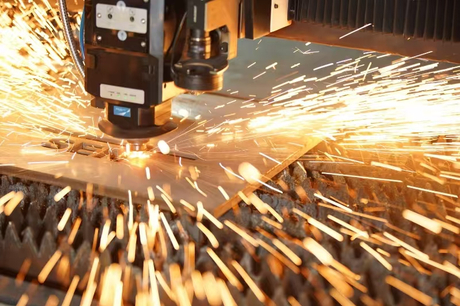

Laser cutting is a sophisticated and highly accurate manufacturing process that utilizes the focused energy of a laser beam to cut through various materials. It has become a preferred method for industrial and commercial applications, ranging from metal cutting to fabricating materials like wood, plastic, and even food. One of the most crucial aspects of the laser cutting process is understanding the role of laser cutting power and its impact on the cutting quality, speed, and material compatibility. This guide delves into what laser cutting power is, how it influences the cutting process, and the considerations for setting the correct power levels.
Laser cutting power refers to the amount of energy that a laser beam delivers to the material during the cutting process. This energy is typically measured in watts (W), and it plays a critical role in determining the efficiency and quality of the cut. The laser cutting power can be controlled by adjusting the laser's wattage, which directly influences the heat generated by the laser beam, its ability to melt, vaporize, or burn through the material, and the speed of cutting.
Laser cutting power is generated by a laser source, such as a CO2 laser or a fiber laser, that uses electrical energy to excite a medium (gas or fiber) to produce a laser beam. The laser light produced is focused through a lens and directed onto the material to be cut. The intensity of the laser beam is determined by the amount of electrical energy supplied to the laser, and this is the key factor that controls the laser cutting power.
The laser beam's power can be adjusted through a variety of methods, including adjusting the power supply settings or changing the lens used to focus the beam. For different materials, higher power levels are generally needed for thicker, denser materials, while lower power is sufficient for thinner or softer materials.
Laser power significantly impacts the cutting process by influencing several factors, such as cut quality, speed, and material compatibility. It directly affects how well the laser cuts through the material, how much heat is applied, and the efficiency of the process. Here's how varying laser power levels impact cutting:
When the laser power is set too low, the laser beam may not have enough energy to effectively cut through the material. As a result, the material may be partially cut, or the cut may be slow, uneven, or incomplete. Low power settings may also lead to excessive material burnishing (the surface becomes scorched or darkened), particularly for materials like wood or paper. Additionally, low power can cause the material to be poorly penetrated, leading to more heat damage around the cut edge, which can decrease the overall quality of the cut.
On the other hand, when the laser power is set too high, the laser beam may apply too much heat to the material, causing excessive thermal damage, such as warping or burning. High power settings are typically necessary for cutting thicker or denser materials, but it can lead to undesirable results on thinner materials. For example, high power levels may cause overcutting, where the laser penetrates too deeply into the material, causing an irregular or too wide cut.
The wattage of the laser determines how much energy the laser beam produces. Common laser wattages range from 100W to 5000W, with higher wattages used for cutting thicker and tougher materials, such as steel, titanium, and aluminum. The wattage chosen depends on the material and the thickness of the material being cut. For example, a 100W laser might be sufficient for cutting thin plastic sheets or fabrics, while a 2000W or 4000W laser is typically used for cutting metals and other heavy-duty materials.
The focus of the laser beam is another critical factor affecting the cutting process. The focus lens determines the diameter of the laser beam at the point where it contacts the material. A highly focused beam provides better precision and a cleaner cut, while a less focused beam may result in rougher cuts with more heat-affected zones. The power of the laser will influence how well the beam can be focused for optimal cutting results.
Assist gases, such as oxygen, nitrogen, or air, are used to blow away the molten material during cutting. The type of assist gas and its pressure can significantly affect the cutting quality and speed. For example, oxygen is typically used for cutting metals like steel, as it aids in oxidation and increases the cutting speed. Nitrogen is used for stainless steel and aluminum cuts to prevent oxidation. The pressure of the gas helps ensure that the molten material is efficiently removed from the cut, which is essential for maintaining quality and speed.
Machine calibration is crucial for ensuring that the laser is aligned correctly and that the cutting process is stable. Misalignment or improper calibration can lead to inefficient cutting, excessive wear on the machine, or inconsistent cut quality. Proper calibration involves adjusting the alignment of the laser head, the focusing lens, and the cutting bed.
The beam quality is often represented by the M² factor, which quantifies the degree to which the laser beam is focused. A higher M² factor indicates a less focused beam, which may not perform well for precision cutting. A lower M² factor indicates a higher quality beam, resulting in better-cut quality and precision. The beam quality is influenced by the power and wavelength of the laser, and it's important to choose a machine with appropriate beam quality for the specific cutting task.
The cutting pattern is another factor that can influence the laser cutting process. Intricate cutting patterns with many sharp turns or small cuts may require different power settings compared to simple straight-line cuts. Adjusting the power levels appropriately for different patterns ensures smooth and accurate cuts while minimizing waste and improving efficiency.
A well-maintained cooling system ensures that the laser machine operates at optimal temperatures, preventing overheating. Cooling systems help to regulate the temperature of the laser head and the material being cut. An effective cooling system is essential for maintaining the longevity of the machine and achieving consistent cutting performance.
The reflectivity of the material being cut influences the laser cutting power needed. Highly reflective materials, like copper and aluminum, tend to reflect more of the laser energy, meaning more power is required to effectively cut through them. On the other hand, low-reflectivity materials, like carbon steel, absorb more laser energy, allowing for more efficient cutting at lower power levels.
Environmental factors, such as temperature, humidity, and air pressure, can also affect the cutting process. For example, high humidity can cause condensation on the laser equipment, which can impact beam quality. Similarly, high temperatures may require adjustments to the power settings to ensure consistent performance.
The stability of the laser's power supply is crucial for maintaining consistent cutting performance. Voltage fluctuations or power surges can lead to inconsistencies in laser power, which may result in cuts that are either too shallow or too deep. A stable power supply ensures that the laser maintains the correct power output throughout the cutting process.
The quality of the cutting bed, including its flatness and cleanliness, directly impacts the quality of the cut. A warped or dirty cutting bed can cause the laser to be out of focus, leading to uneven cuts. Ensuring that the bed is level and free of debris allows for consistent laser cutting power and high-quality results.
Finally, the skill and experience of the operator play a significant role in determining the optimal laser cutting power. An experienced operator can adjust the settings based on the material type, thickness, and required cut quality, while a less experienced operator may struggle to find the optimal balance, leading to inefficiency or poor-quality cuts.
Laser cutting power and cutting speed are closely related, as both affect the overall efficiency and outcome of the cutting process. The relationship between the two is dependent on the material being cut and the specific machine being used.
When the cutting speed is set too low, the laser beam spends more time on each point of the material, which can cause excessive heat buildup. This leads to thermal damage, such as discoloration, warping, or even burning of the material. It can also result in slower cutting times and reduced overall productivity.
On the other hand, setting the cutting speed too high can result in insufficient energy being delivered to the material, causing incomplete cuts or poor edge quality. High speeds may also lead to increased kerf width, which is the width of the cut, potentially causing misalignment or imprecise results.
Different materials require different laser power settings to achieve optimal cutting results. Below are some general guidelines for the recommended laser power settings for various materials:
Power: 300W–4000W
Thickness: Up to 25mm
Power: 500W–4000W
Thickness: Up to 20mm
Power: 1000W–3000W
Thickness: Up to 10mm
Power: 1000W–2500W
Thickness: Up to 8mm
Power: 1500W–3000W
Thickness: Up to 6mm
Power: 1000W–3000W
Thickness: Up to 10mm
Power: 2000W–4000W
Thickness: Up to 6mm
Power: 1500W–4000W
Thickness: Up to 8mm
Power: 200W–1000W
Thickness: Up to 3mm
Power: 200W–500W
Thickness: Up to 1mm
Power: 300W–1000W
Thickness: Up to 2mm
Power: 1000W–3000W
Thickness: Up to 5mm
Power: 500W–1500W
Thickness: Up to 4mm
Power: 500W–1500W
Thickness: Up to 3mm
Power: 1500W–5000W
Thickness: Up to 12mm
Power: 100W–500W
Thickness: Up to 10mm
Power: 100W–300W
Thickness: Up to 20mm
Power: 100W–200W
Thickness: Up to 10mm
Power: 100W–200W
Thickness: Up to 10mm
Power: 100W–200W
Thickness: Up to 15mm
Choosing the right laser cutting power involves considering various factors, such as the material's thickness, composition, and desired cut quality. It is essential to test different power settings to determine the optimal combination for each material type and thickness. Factors like laser beam focus, assist gas type, and cutting speed also need to be taken into account to optimize the cutting process.
Laser cutting power density refers to the concentration of laser power in a specific area of the material being cut. It is determined by dividing the laser power by the beam's spot size. Higher power density results in more intense heating, which is ideal for cutting harder and thicker materials. Lower power density is suited for thinner or softer materials.
The power consumption of a laser cutter depends on its wattage and the operational time. Higher-wattage machines typically consume more power, and the power consumption increases when the machine is running at full capacity. Laser cutting machines usually operate efficiently, but power consumption can become a significant factor in long-term operational costs.
Understanding laser cutting power is vital for achieving high-quality cuts in various materials. Properly adjusting the laser power based on material type, thickness, and cutting speed ensures that the cutting process is efficient, cost-effective, and precise. By considering factors like assist gases, machine calibration, and operator skill, manufacturers can optimize their laser cutting processes for the best results.
Q: What happens if I use too much laser power?
A: Excessive laser power can cause overheating, leading to material damage, poor cut edges, and excessive heat-affected zones.
Q: Can I use the same laser power for different materials?
A: No, different materials require different laser power settings based on their thickness, reflectivity, and composition.
Q: How do I know the right power setting for my machine?
A: The right power setting depends on the material you're cutting. Test different settings on sample materials to determine the optimal power for your cutting needs.
