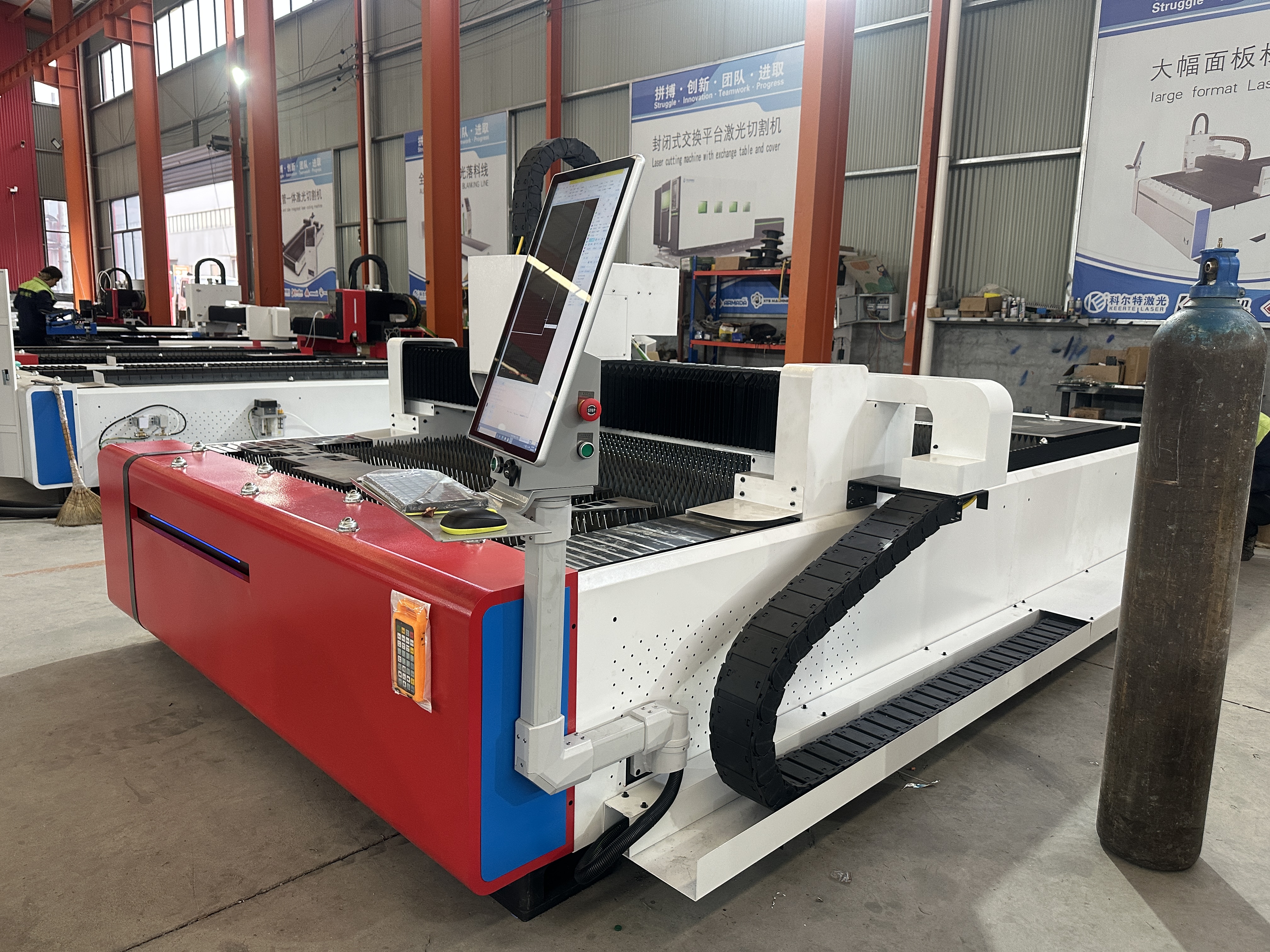

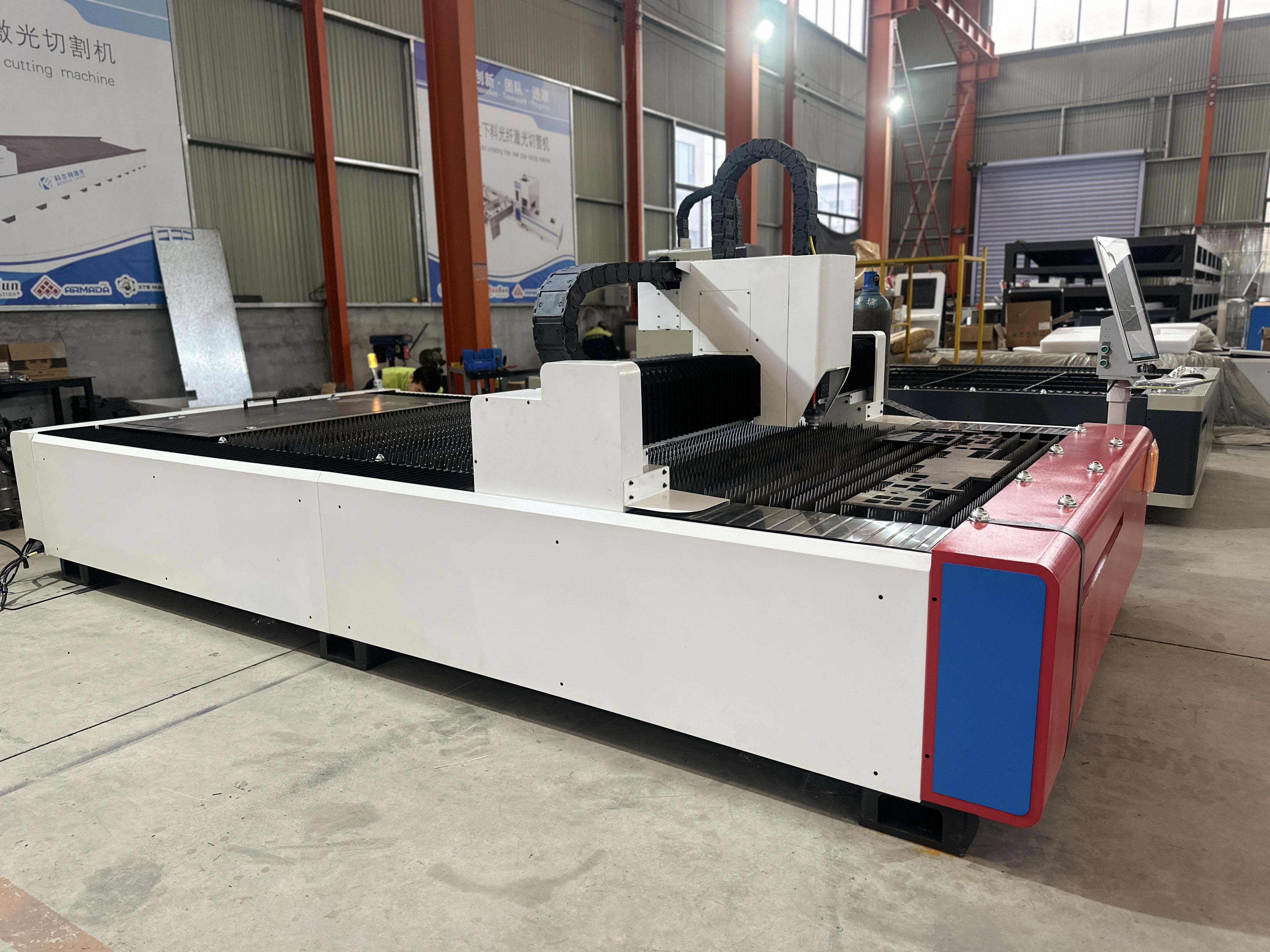

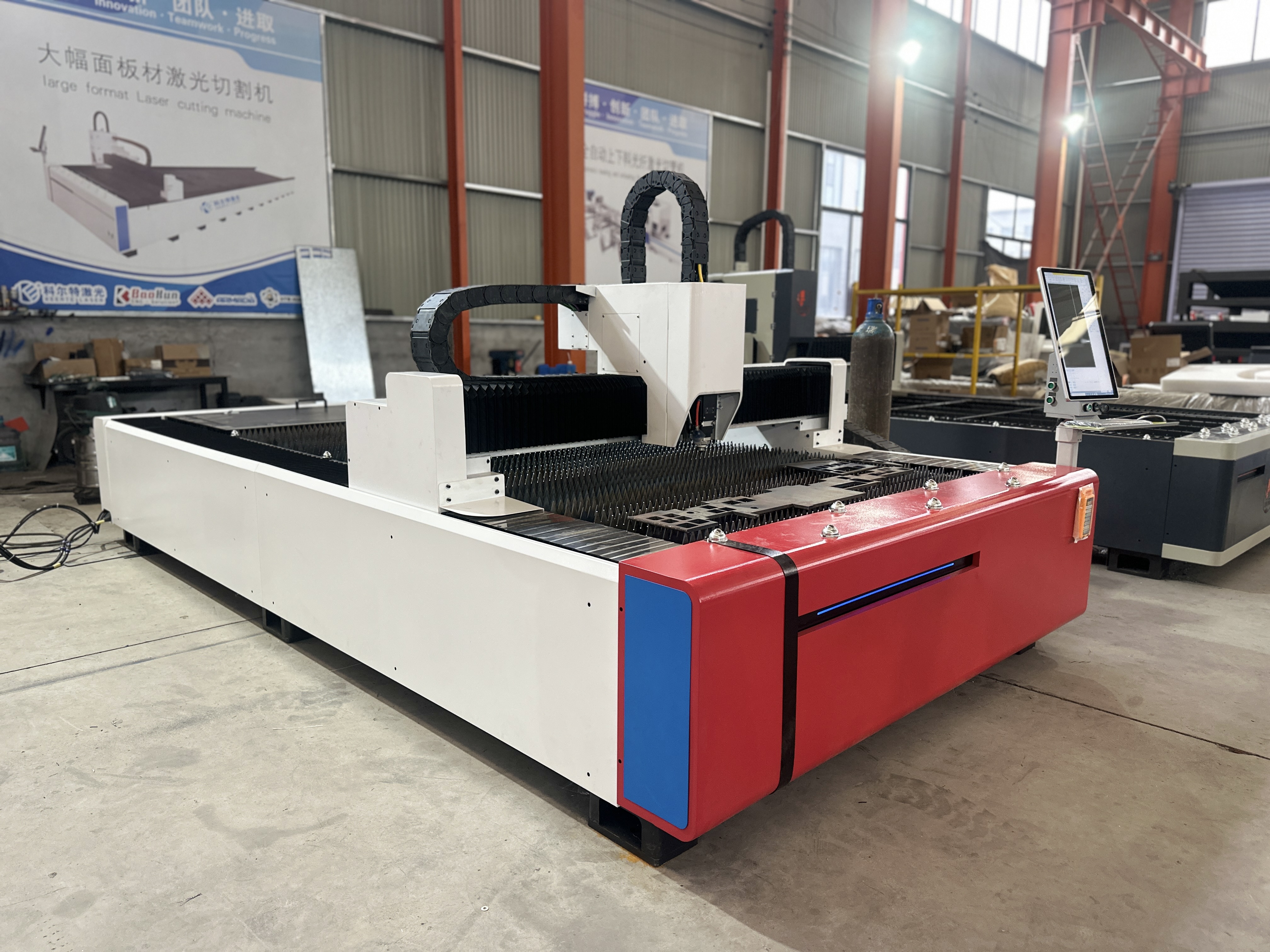

1530-2KW Fiber Laser Cutting Machine | High Precision & Versatility
Overview of the laser cutting machine
The 1530-2KW Fiber Laser Cutting Machine is engineered for industrial-grade precision, exceptional speed, and cost-efficient performance. Designed to handle a wide range of materials—from thin stainless steel to thicker carbon steel—this machine is ideal for metal fabrication, automotive, aerospace, and electronics industries.
With a 1500mm × 3000mm (5×10 ft) cutting bed and 2KW fiber laser power, it delivers clean cuts, minimal waste, and unbeatable reliability.
Key Specifications & Configuration of the laser cutting machine
1. Laser System & Cutting Performance
Laser Power: 2KW MAX Brand Fiber Laser Source (brand customizable)
The 1530-2KW Fiber Laser Cutting Machine is engineered for flawless performance, featuring a fully enclosed optical path to ensure zero light leakage when the laser is turned off, guaranteeing operator safety and energy efficiency. Its compact structure and minimized footprint allow seamless integration into workshops without sacrificing productivity.
Equipped with a high-performance pulsed laser source, it delivers ultra-narrow optical pulses, exceptionally high peak power, and a broad repetition rate range—enabling precision cuts on everything from reflective metals to delicate composites. Built for industrial durability, the system boasts electro-optically moduled components and ruggedized cooling to achieve long service lifespans (>100,000 hours)
Cutting Thickness Range:
Carbon Steel: Up to 12mm (optimal ≤8mm)
Stainless Steel: Up to 6mm
Aluminum: Up to 5mm
Brass/Copper: Up to 4mm
2. Mechanical Structure of the laser cutting machine
Frame Design: Heavy-duty welded steel frame with thermally stabilized beams to prevent deformation.
Guide Rails: High-precision linear guides (Taiwan HIWIN) for smooth motion and long lifespan.
Transmission System: Servo motors + helical gear racks ensure fast acceleration & minimal backlash.
3. The fiber laser cutting machine Control & Software
Control System:FSCUT 2000E (user-friendly interface, supports DXF files).
Software Compatibility: AutoCAD, SolidWorks,, etc.
Features: Nesting optimization, real-time monitoring, and automatic height adjustment.
4. Auxiliary Systems of the fiber laser cutting machine
Cooling System: Industrial chiller (±1°C stability) for continuous operation.
Exhaust System: High-power dust extractor with smoke filtration (optional).
Protection: Full enclosure with safety sensors (EU CE standards).
Advantages Over Competitors
✔ Higher Cost Efficiency – Lower power consumption vs. CO₂ lasers.

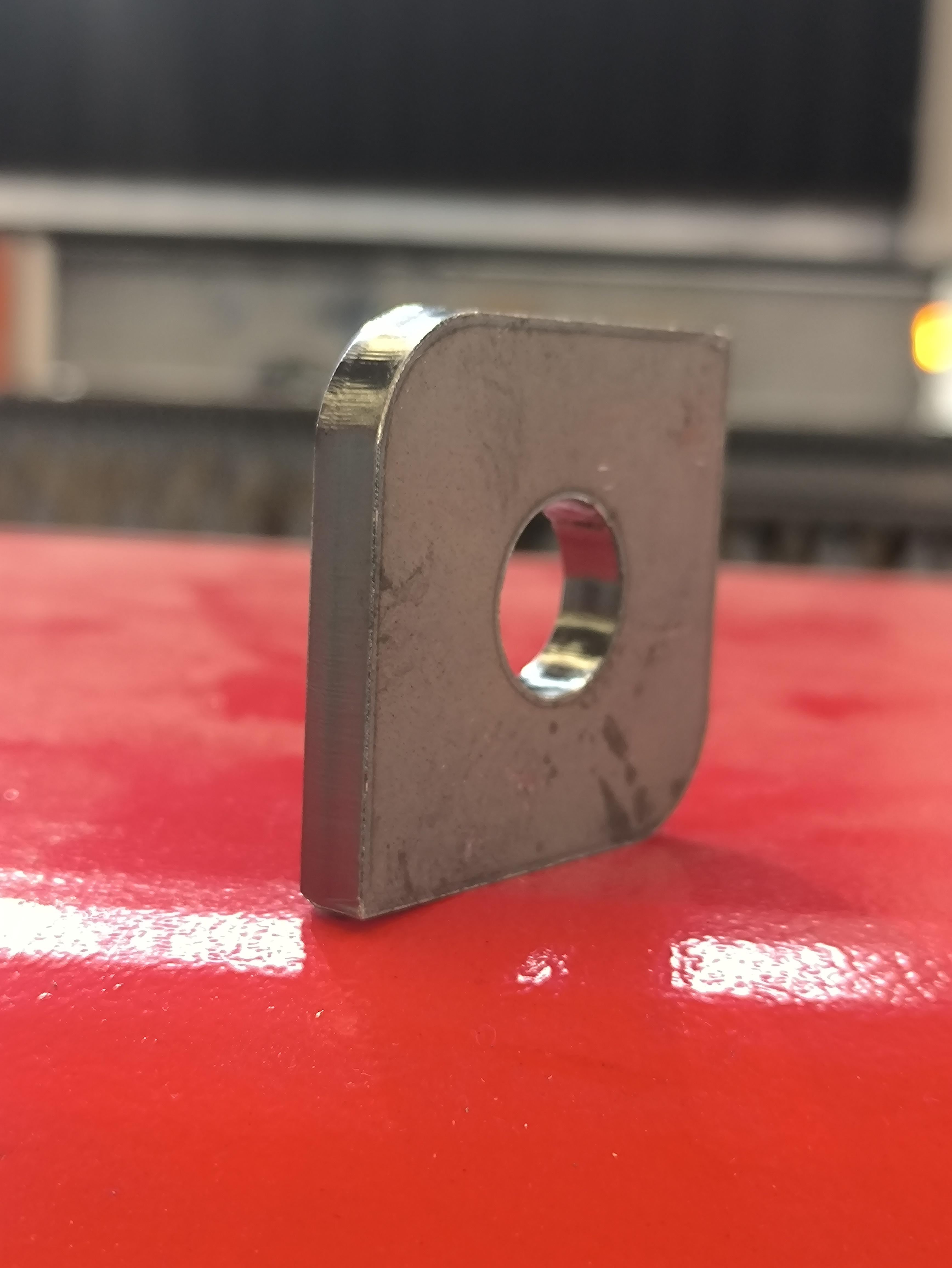

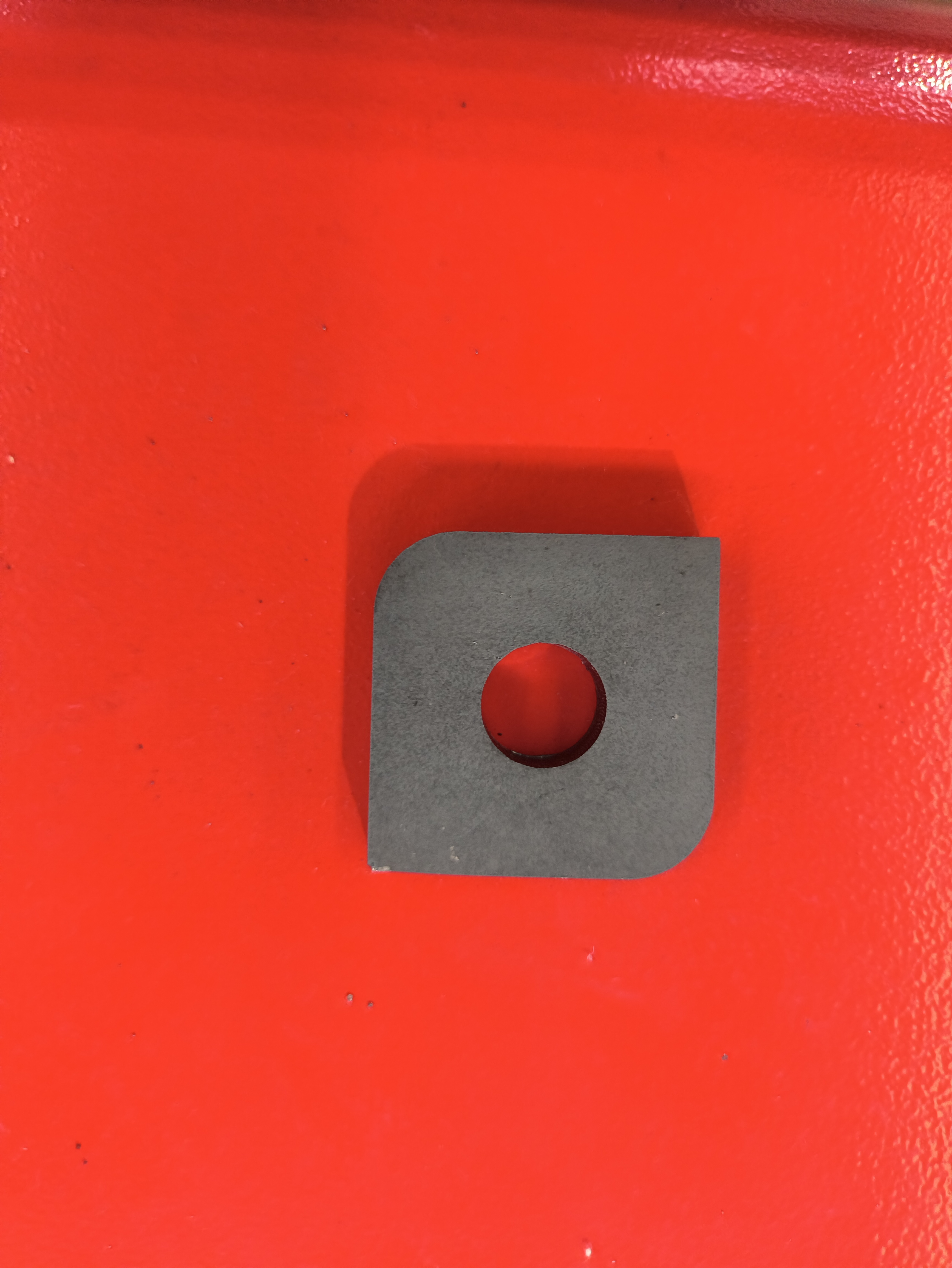

✔ Superior Edge Quality – Smooth, burr-free cuts reduce secondary processing.
✔ Minimal Maintenance – Fiber laser has no mirrors/lenses to align, saving downtime.
✔ Thin-to-Medium Material King – Dominates sheet metal fabrication (<12mm steel).
Ideal Applications of the fiber laser cutting machine
1. Metal Fabrication Shops
Perfect for doors, panels, brackets, and decorative metalwork.
2. Automotive & Aerospace
Precision-cutting exhaust parts, chassis components, and aircraft fittings.
3. Electronics & Appliances
Clean cuts for control panels, enclosures, and heat sinks.
4. Industrial Machinery
Produces gears, hydraulic parts, and conveyor components efficiently.
Why Choose Our 1530-2KW Laser Cutter?
✅ Backed by 24/7 Tech Support & Warranty
✅ Plug-and-Play Installation (Training included)
✅ Customizable Options (Rotary axis, increased power, etc.)
