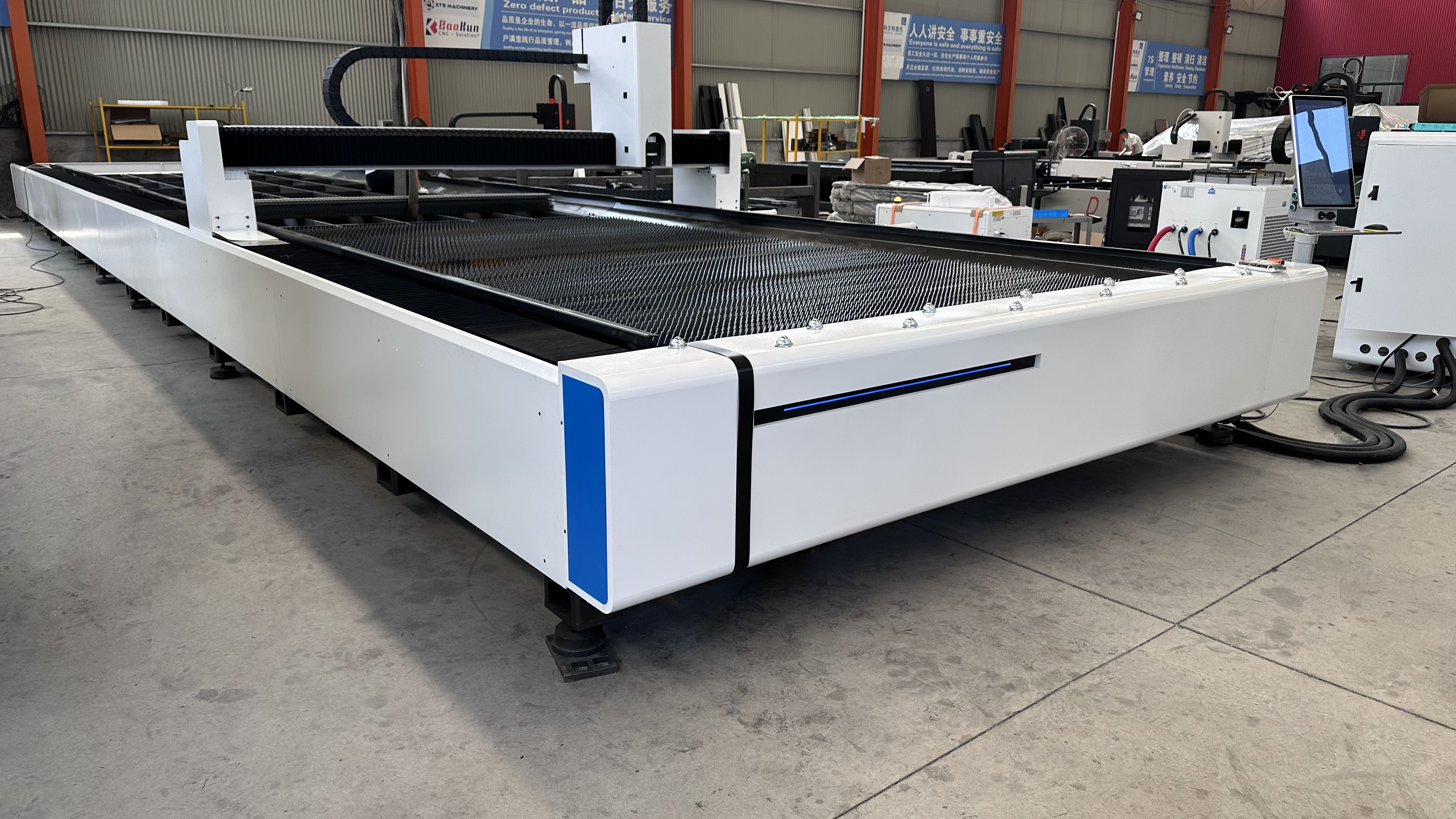

Our 12020 split type 12KW fiber laser cutting machine redefines large-format laser processing. Built with patented detachable split bed structure, it retains full 12000×2000mm ultra-large processing area and 12kW heavy cutting performance, yet cuts container volume drastically. It is the exclusive cost-effective oversized laser solution for overseas metal workshops, structural steel factories, signage manufacturers and heavy machinery processing plants.

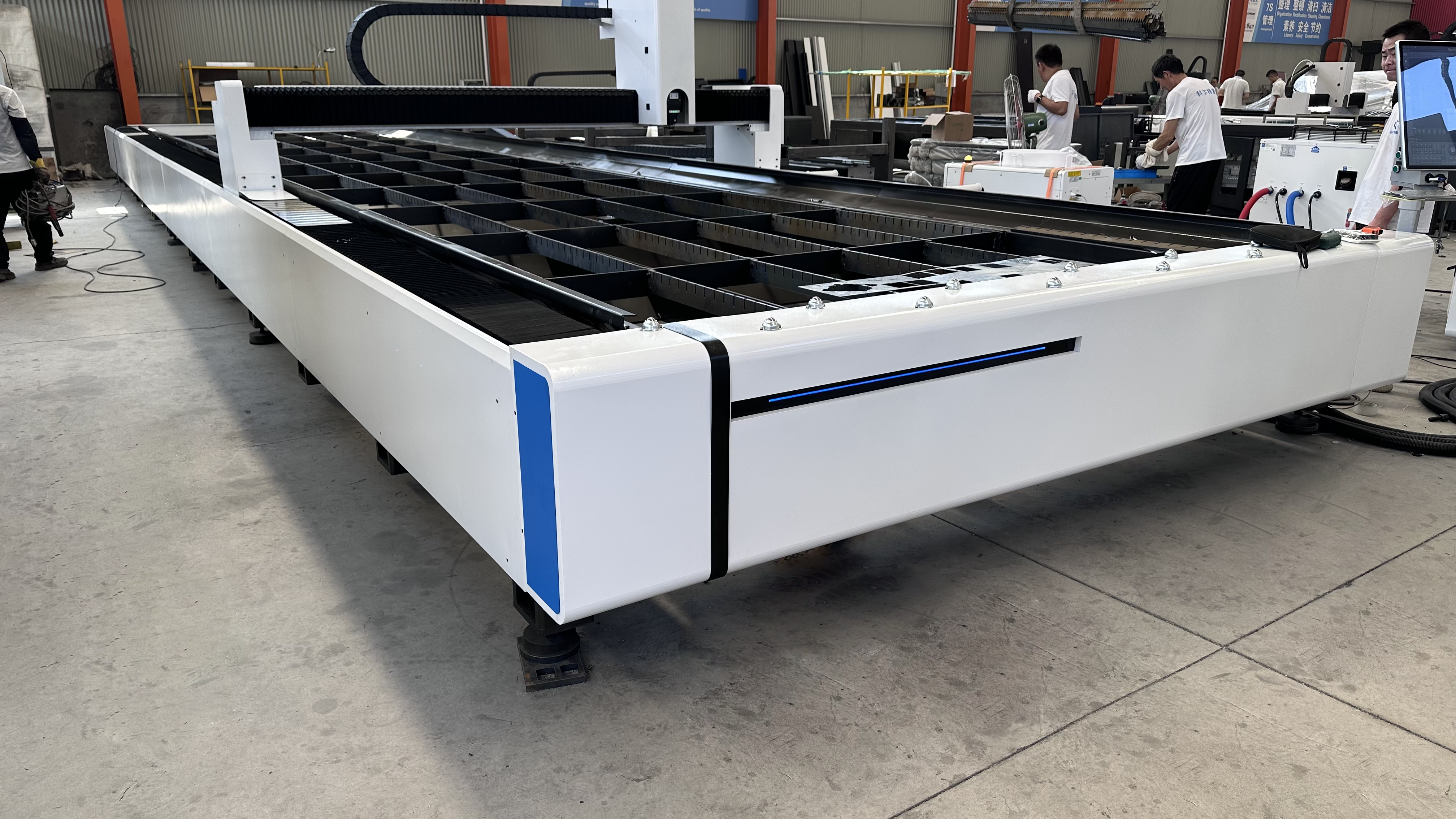

Unlike ordinary one-piece 12m laser cutters, this model adopts segmented detachable bed + separate laser source cabinet split layout, the core innovation that separates us from generic large-format machines:
Our fiber laser cutting machine can Lower 70% International Shipping Cost
The machine bed splits into 3 independent standard modules, each segment fits standard container loading limits. No oversize surcharge, no special flat rack container fees. For buyers in Southeast Asia, Middle East, Africa and Latin America, ocean & inland trucking cost is reduced by nearly two-thirds, directly lifting your equipment
Split Type laser cutting machine can Easy Cross-Border Transportation & Local Installation
No oversized road transport permits needed after the fiber laser cutting machine arrival. Local technicians complete assembly within 4–6 hours with detailed bilingual assembly drawings and standard connecting fasteners. The split joint adopts mortise and tenon precision positioning, re-assembled flatness error ≤0.03mm, no loss of cutting accuracy after repeated disassembly.
Flexible Workshop Layout & Later Maintenance
Segmented bed of the laser cutting machine can be moved separately when you adjust production lines or replace spare parts. Damaged single module can be replaced independently, no need to hoist the whole 12m machine, greatly lowering daily maintenance difficulty for small & medium factories.

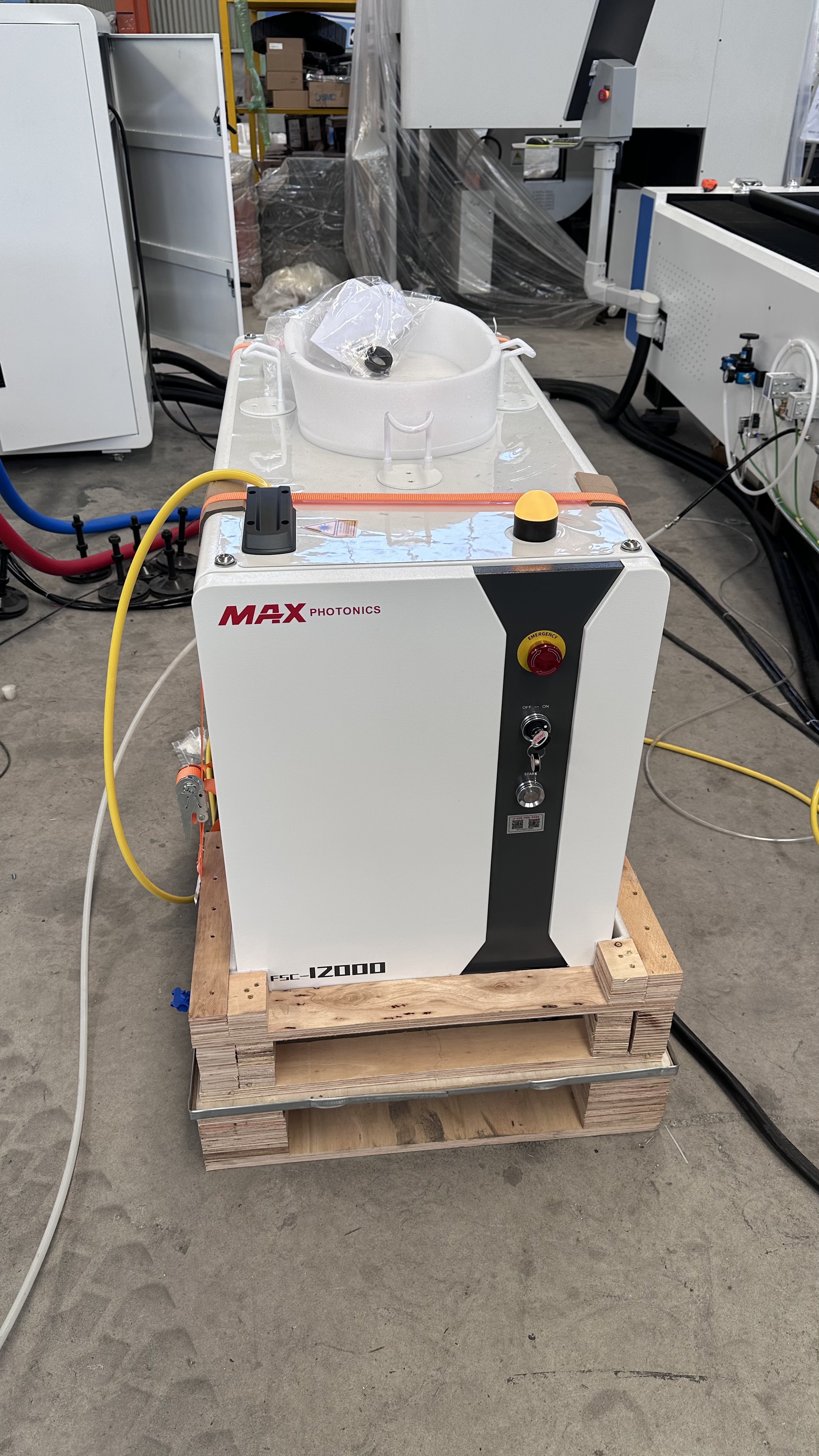

The laser cutting machine Equipped with optional MAX 12000W single-module fiber laser generator, electro-optical conversion efficiency up to 45%, Stable high-energy laser beam delivers unmatched thick-plate cutting capacity:
Mild carbon steel: Max 40mm clean cutting with oxygen
Stainless steel: Max 30mm burr-free cutting with nitrogen
Aluminum alloy / copper / brass: Max 25mm high-reflective metal stable cutting
Thin sheet 1–10mm: High-speed air cutting, save nitrogen consumption 60%
Compared with 6kW/8kW medium-power cutters, 12KW boosts cutting speed by 60%–120% on same thickness plates, pierces thick materials within 1 second, eliminates frequent material burn-through and slow piercing bottlenecks during mass production.

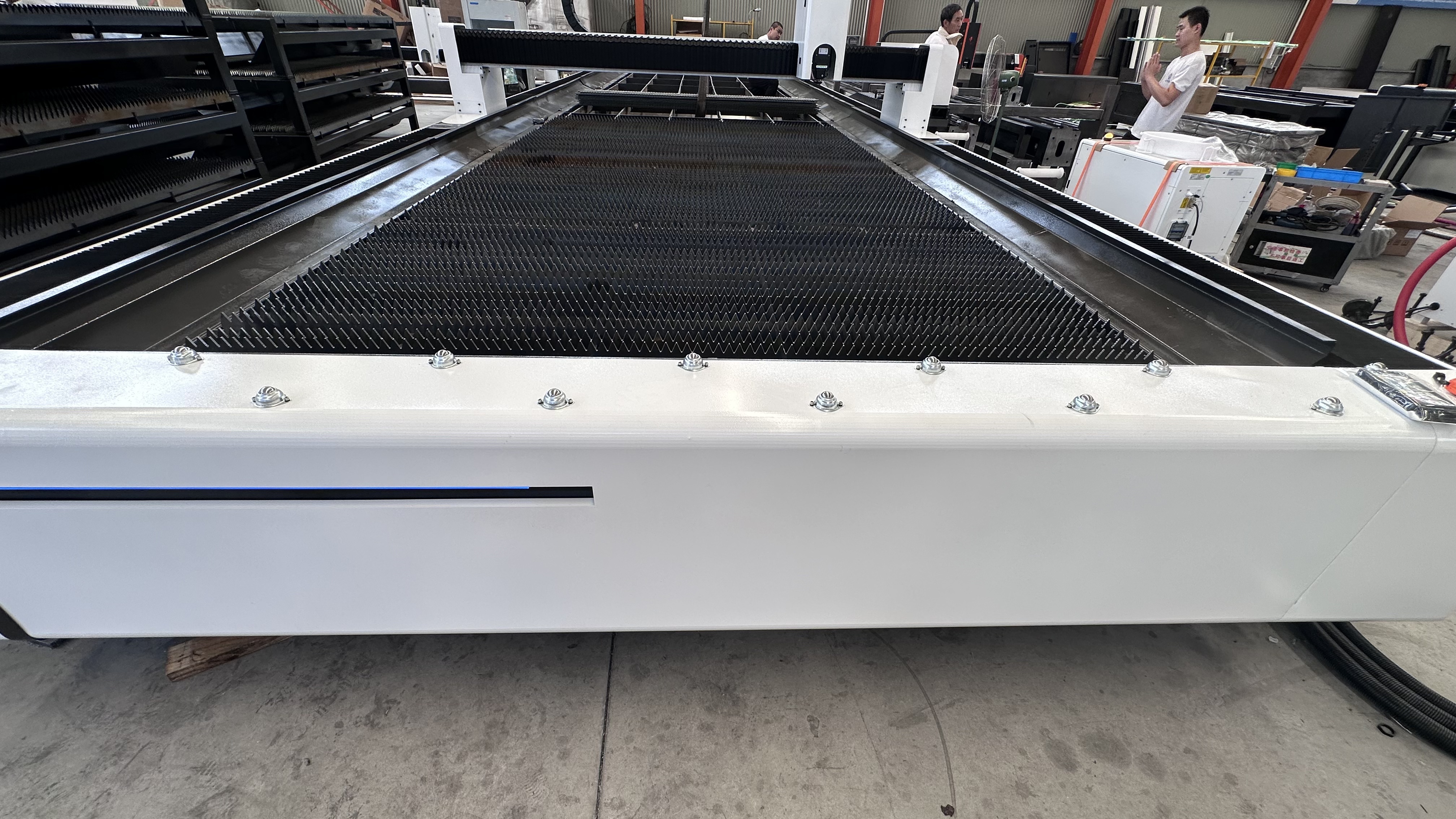

Heavy-duty integral welded split bed, full annealing stress relief treatment, anti-deformation under 24h non-stop production; replaceable anti-slag wear-resistant strips extend bed service life 3x longer.
Aviation-grade hollow aluminum gantry beam, lightweight & high rigidity, max linkage speed 100m/min, acceleration 1.5G, no shaking when cutting long slender parts.

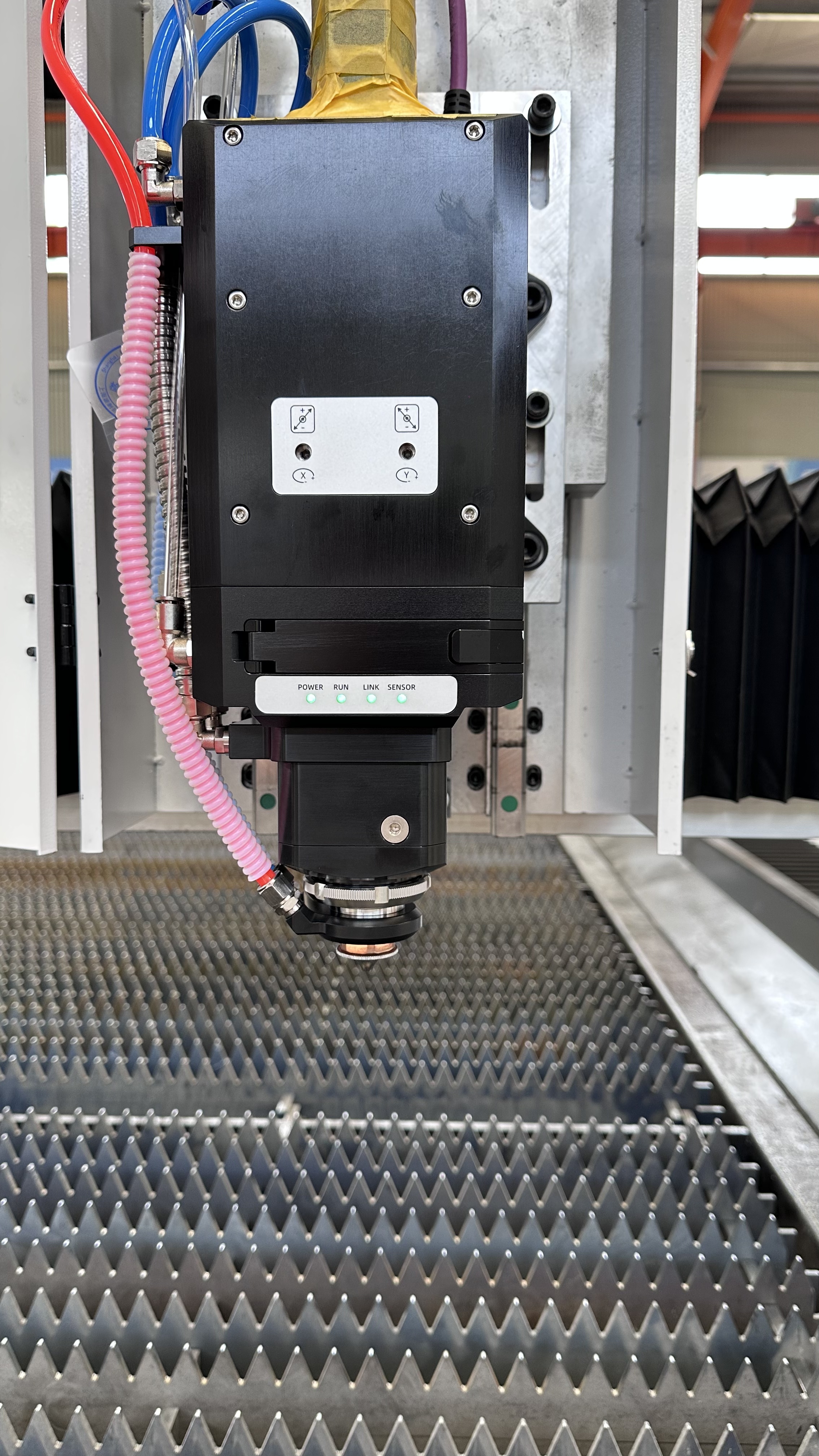

Global top-tier matching parts: Delta servo motors, Hiwin linear guide rails, BOCI auto-focus laser head with real-time height tracking, auto anti-collision protection to avoid laser head damage caused by uneven plates.
Intelligent Cypcut control system: Built-in global material cutting parameter library, one-click switch for carbon steel, stainless steel, aluminum, copper; automatic edge detection, zero-delay piercing, automatic residue cleaning reminder to reduce manual operation errors.
Adopts zoned automatic smoke exhaust system, only opens suction valves above cutting paths, centralized smoke collection without workshop pollution.
Power-saving: 12kW laser low idle power consumption, monthly electricity bill reduced by thousands USD vs traditional thick cutting equipment
Low consumable cost: Laser source service life over 100,000 hours, nozzle & ceramic ring replacement cycle 2–4x longer than low-power machines
Item | Specification |
|---|---|
Model | Split 12020 Fiber Laser Cutting Machine |
Working Area | 12000mm (X) × 2000mm (Y) |
Laser Power | 12000W (12kW) |
Laser Source | MAX |
Max Linkage Speed | 100 m/min |
Positioning Accuracy | ±0.02 mm |
Reposition Accuracy | ±0.01 mm |

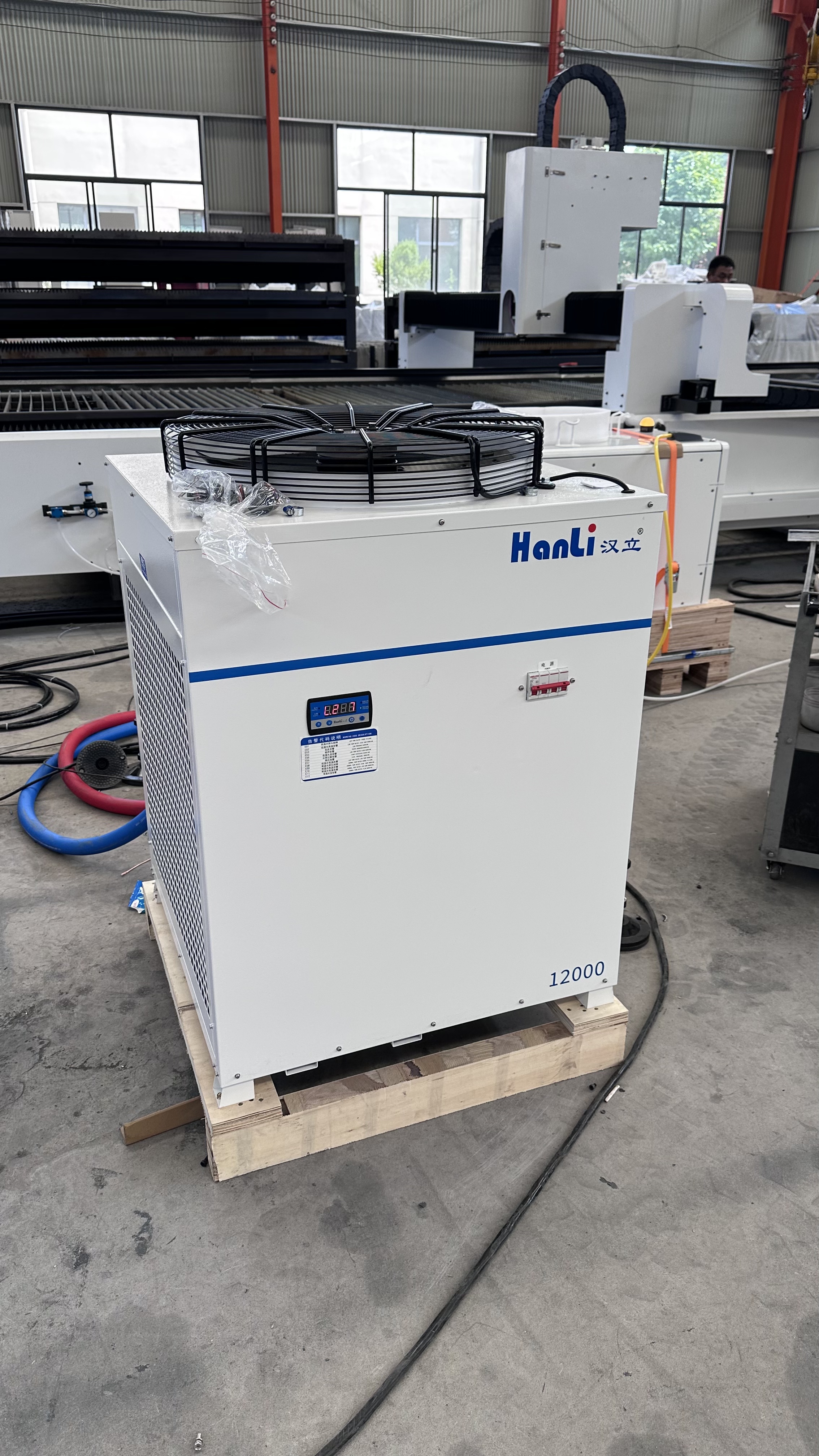

Cooling System | HANLI industrial water chiller |
Control System | Cypcut Intelligent CNC System |
Split Mode | 3-segment detachable machine bed |
Standard Certification | CE, ISO, FDA |
The 12m extra-large working table perfectly processes oversized single metal sheets without splicing, improving material utilization rate up to 98%:
Structural steel, engineering machinery accessories
Billboard, outdoor large metal signage
Chassis, cabinet, electrical equipment shell
Agricultural machinery, vehicle metal parts
Elevator metal plates, pressure vessel accessories
Stainless steel kitchen equipment, decorative metal engineering
Exclusive split modular patent design – No other mainstream 12m laser cutter can match its logistics cost advantage; core selling point to stand out on Google search results
Balanced performance & cost – Same thick cutting capacity as integrated 12kW 12020 machine, but shipping cost cut by over half
Global after-sales support – Multilingual operation manual, remote online debugging, overseas spare parts warehouse, 24-month warranty for laser source
Customization available – Support dust-proof full cover, automatic exchange platform, pipe cutting attachment, customized working length according to customer factory space
Zero secondary processing – Smooth vertical cutting surface without burr, save grinding & polishing labor cost for mass production
