Baokun Model 1515 3kW Fully Enclosed Single-Platform Fiber Laser Cutting Machine with Side-Opening Doors | High-Precision Metal Sheet Cutting Equipment
I. Product Overview of the laser cutting machine

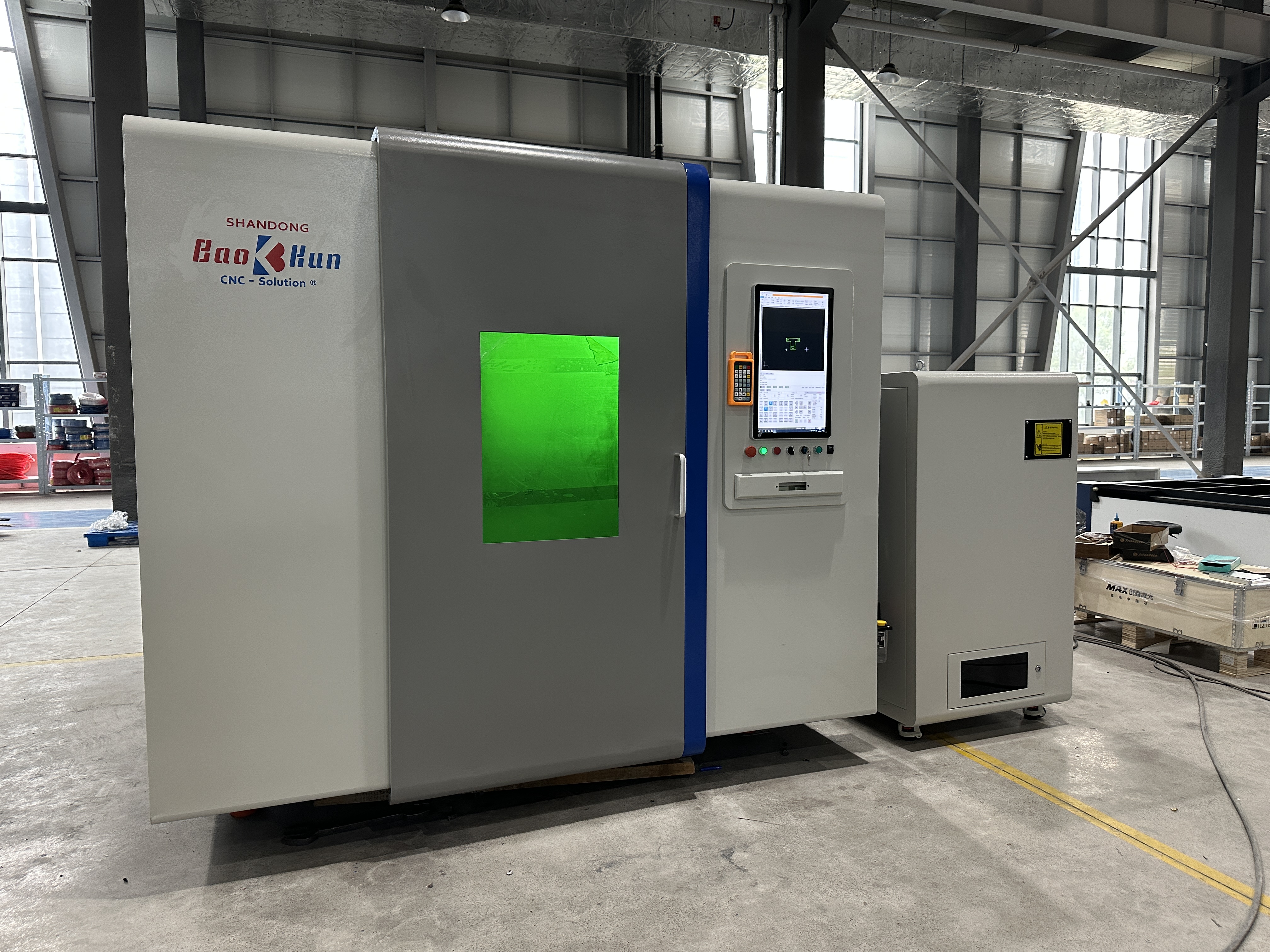

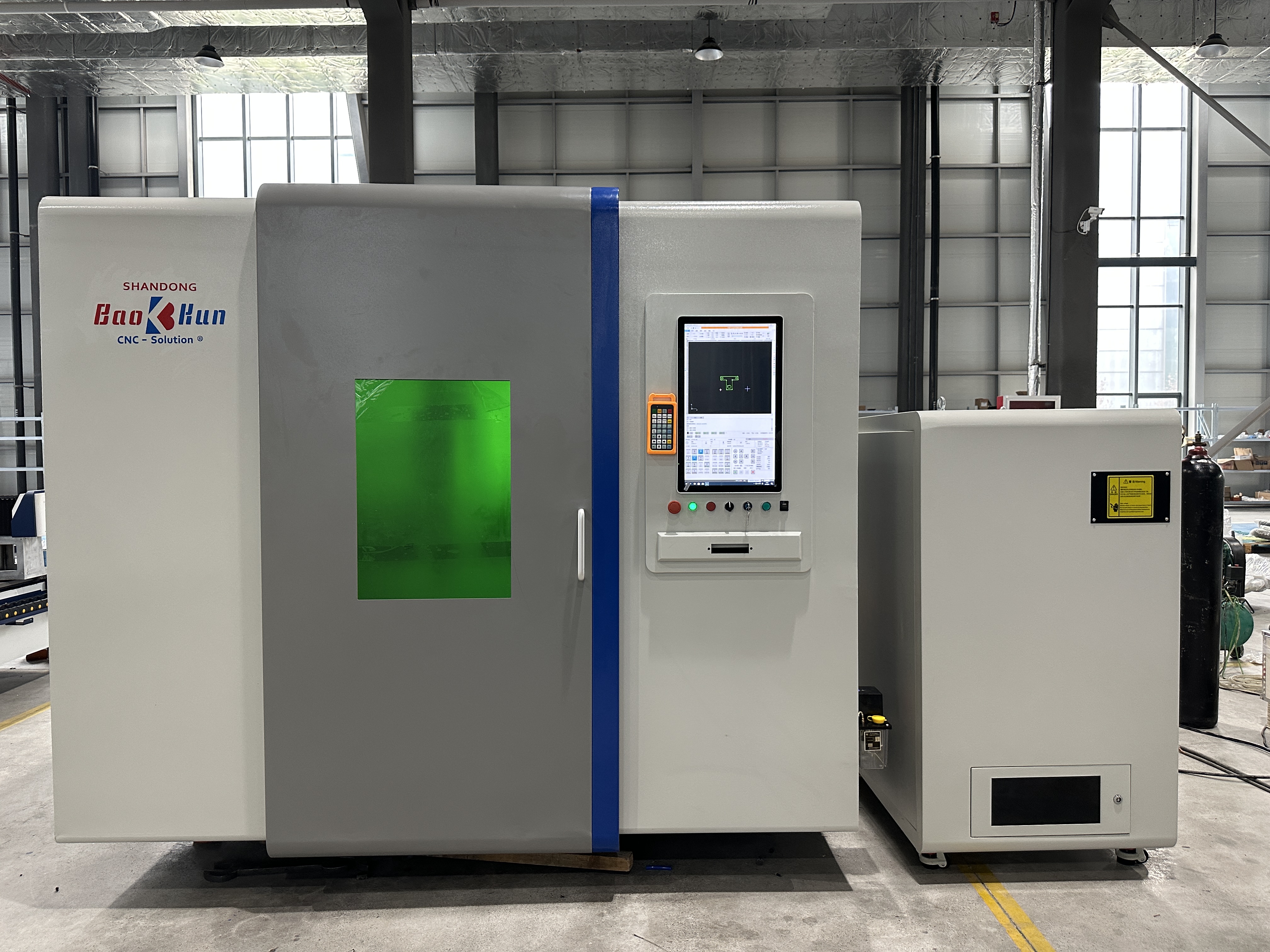

The Baokun 1515 fully enclosed fiber laser cutting machine features a 3000W mainstream fiber laser source, a standard 1500×1500mm single processing platform, and a fully enclosed protective structure with side-opening doors. Combining the four core advantages of safety and environmental friendliness, high precision, high-speed stability, and ease of maintenance, it is the ideal model for batch metal sheet processing by SMEs in sectors such as sheet metal fabrication, hardware manufacturing, advertising and decoration, electrical cabinets, and kitchen equipment. The machine utilizes core components from top-tier brands and a standardized, mature configuration, balancing cost-effectiveness with long-term durability.
II. Core Design Advantages of the laser cutting machine: Fully Enclosed Structure & Side-Opening Doors (Safety + Eco-friendliness + Convenience)

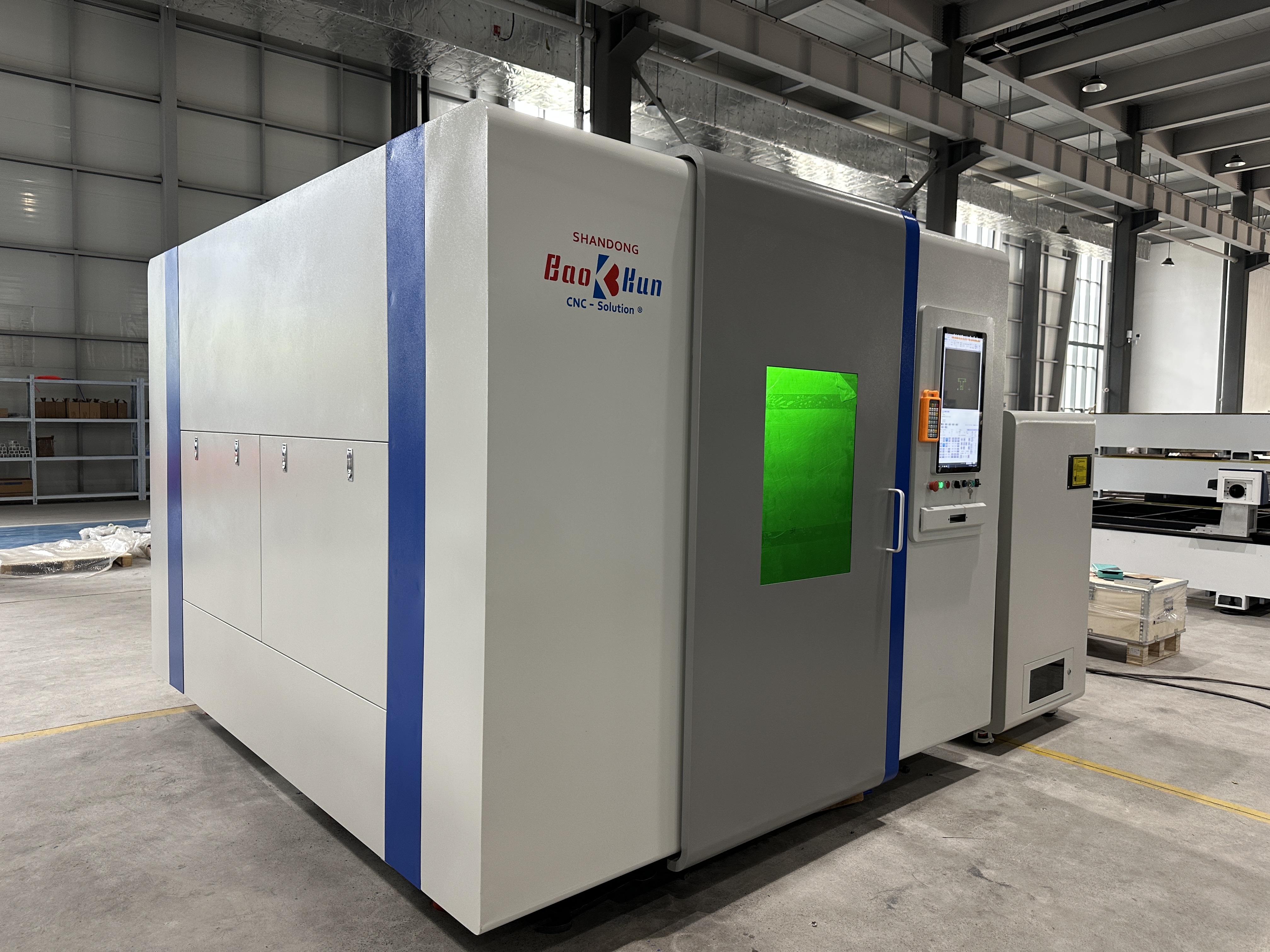

1. Fully Enclosed Protection: Eliminating Laser Radiation and Spark Spatter

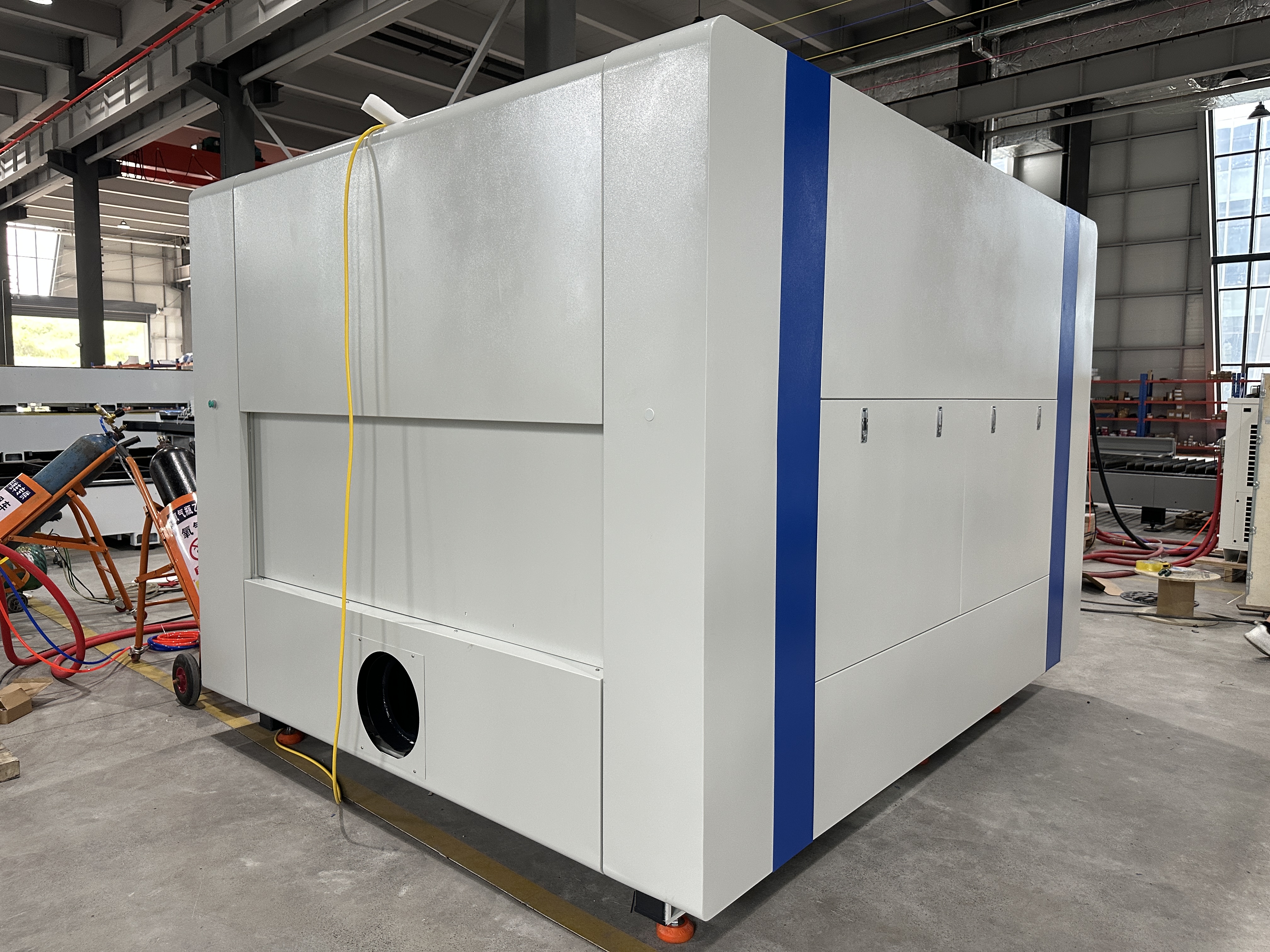

The machine features an all-metal enclosed housing with a laser-safe viewing window, completely isolating intense cutting light and high-temperature molten slag. This prevents eye and skin burns for operators and meets European and American safety standards. Cutting sparks and debris are fully contained within the enclosure, eliminating fire hazards in the workshop and significantly reducing the risk of workplace injuries.

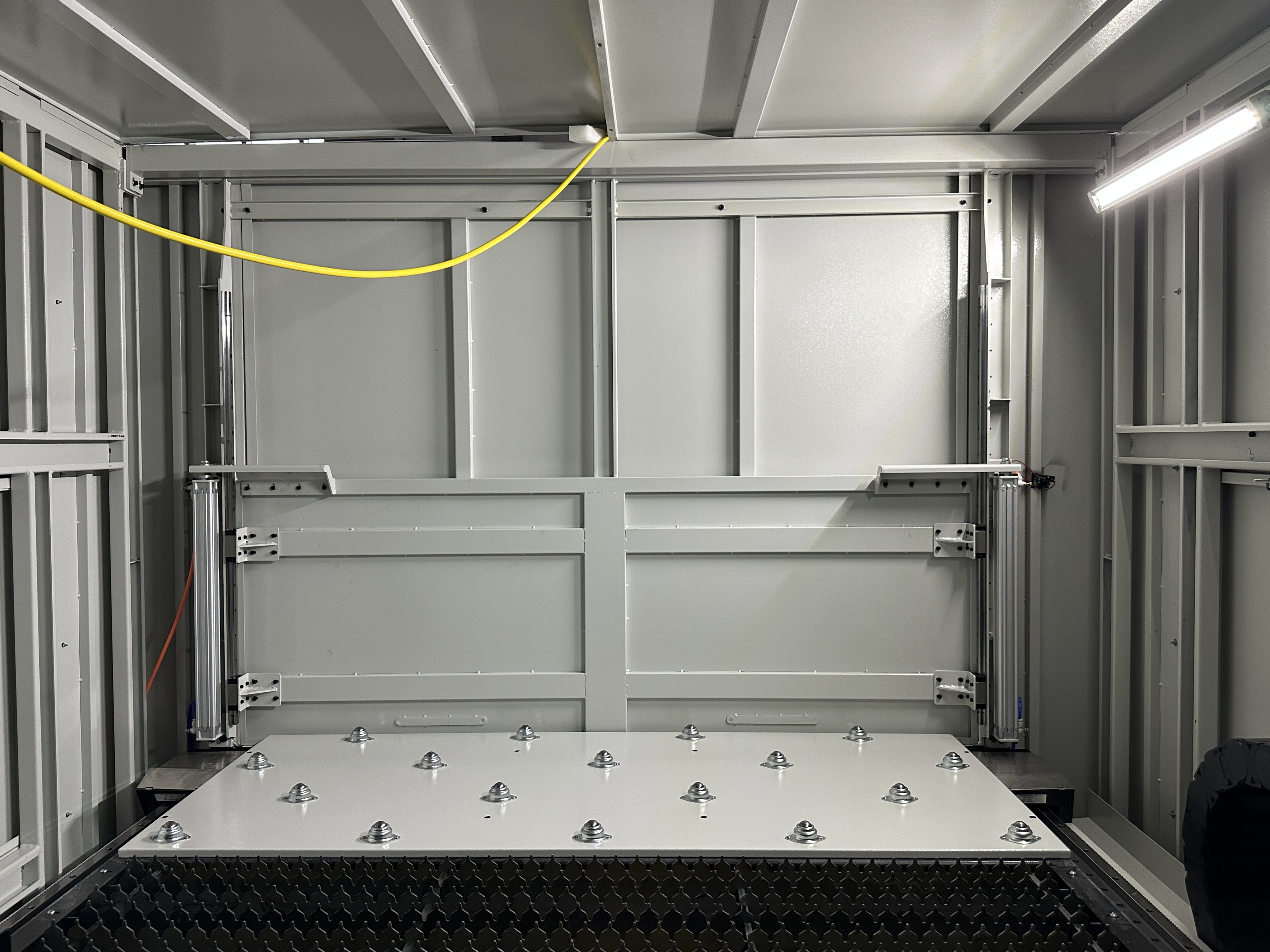

2. Dual-Side Sliding Doors: Convenient Operation and Maintenance
Designed with sliding side doors, the machine automatically stops when a door is opened, featuring a dual safety interlock system. The large side doors facilitate easy sheet loading/unloading, routine cleaning of guide rails and racks, Z-axis module maintenance, and consumable replacement—all without moving the machine—making it easy to operate even in compact workshop spaces.
3. Integrated Dust Extraction: A Dust-Free, Eco-Friendly Workshop
The enclosed chamber supports an optional dust extraction fan, collecting cutting fumes centrally to prevent leakage. This improves the workshop environment and ensures compliance with environmental regulations, making it ideal for processing plants with strict environmental control standards.
4. Upgraded Equipment Protection for Extended Component Lifespan
The external metal protective housing shields against dust and metal debris, protecting core drive and electrical components—such as guide rails, gear racks, servo motors, and cables. This reduces the frequency of routine cleaning and lowers component wear and maintenance costs.
III. Standard Hardware Configuration of the fiber laser cutting machine
(I) Laser Power Core
- Laser Source: 3000W Max / Raycus fiber laser (top-tier brands from Shenzhen/Wuhan). Features excellent beam quality, smooth cut edges, low energy consumption, and a low failure rate; 24-month warranty. Power options range from 1500W to 12000W (upgradable).

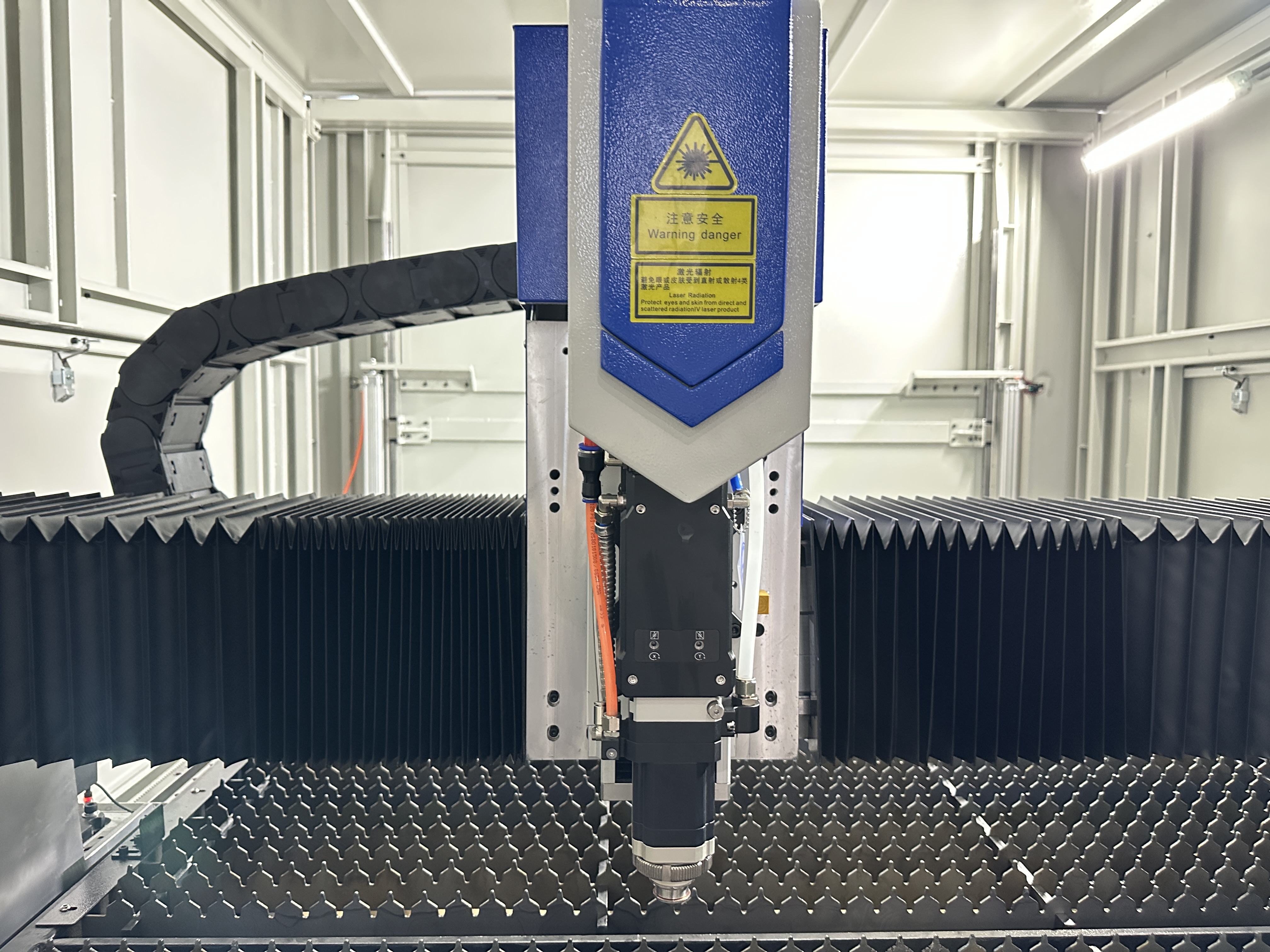

- Laser Cutting Head: FUSCUT-BOCI cutting head. Supports one-touch calibration and automatic nozzle cleaning, reducing manual setup time and enhancing cutting consistency; 24-month warranty.

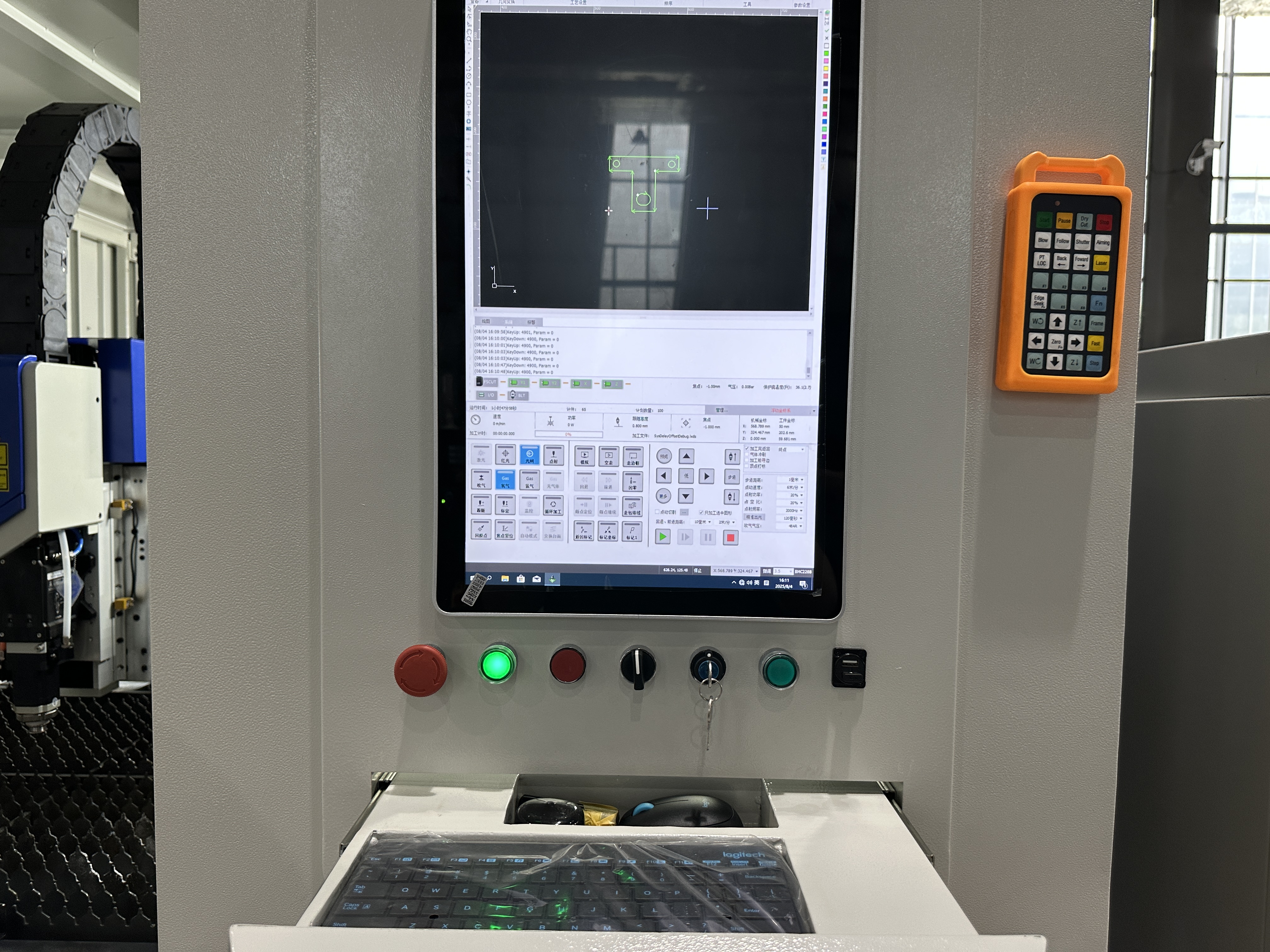

- Control System: FSCUTS CNC system (Shanghai OEM). Features an intuitive interface and compatibility with mainstream drawing formats (DXF/DWG). Supports functions such as fly-cutting, deceleration at sharp corners, and batch nesting, allowing beginners to get up to speed quickly.
(II) Drive and Motion System of the laser cutting machine (High-precision, high-speed core)
1. Integrated Aviation-Grade Aluminum Crossbeam
Extruded as a single piece from aviation-grade aluminum alloy, offering a lightweight yet highly rigid structure with excellent toughness and corrosion resistance. It ensures vibration-free high-speed motion and resists deformation over long-term use, consistently maintaining micron-level cutting precision.
2. Imported Taiwan-made Drive Components
- featuring high wear resistance, strong load-bearing capacity, and quiet operation;
- Taiwan EBELON 2M precision gear racks paired with Shanghai TEKMAKO flange-mounted gear reducers; minimal backlash and precise positioning;
3. High-Power Servo Motors (Standard on 1515 Model)
4. Multi-Reinforced Stable Structure
- All-steel welded machine bed: Heavy-duty integral steel structure, stress-relieved via aging treatment; maintains shape under long-term heavy-load processing;
- Guide rail clamping block structure: Locks in rail precision, resists deformation under pressure, and ensures stable high-speed operation;
- Integrated automatic lubrication system: Precisely supplies oil to guide rails and racks; prevents leakage and splashing; reduces wear, extends component lifespan, and improves cutting precision;
(III) Pneumatic, Cooling, and Electrical Systems of the fiber laser cutting machine
1. Dual-Circuit Pneumatic System (Standard)
Dual-circuit design for high-pressure air/nitrogen and low-pressure oxygen
2. Industrial Water Chiller: Hanli water chiller matched to 3kW laser power; constant temperature control ensures stable, continuous laser operation and prevents shutdowns due to overheating.
3. Electrical Components: Industrial-grade components from Honeywell (USA) and Chint (leading domestic brand); high- and low-voltage lines are physically separated.
(IV) Safety and Practical Auxiliary Structures of the laser cutting machine
1. Fire-Resistant Brick Workbed: The interior of the machine bed is lined with fire-resistant, heat-insulating bricks. These isolate high-temperature molten slag and prevent thermal deformation of the machine frame, significantly extending the equipment's service life.
2. Dual-Support Leveling Feet: Features widened and thickened dual-support leveling feet that allow for precise leveling adjustments; they effectively absorb cutting vibrations and improve the surface finish of the cut.
3. High-Temperature Cable/Hose Protection: Water and gas lines are fully encased in protective metal corrugated conduits to resist spark damage and prevent line breakage, leaks, or pressure loss.
4. Three-Color Smart Warning Light: Green (normal operation) / Yellow (standby/warning) / Red (fault/shutdown); equipment status is visible at a glance, facilitating rapid troubleshooting. Includes low-pressure alarms and voltage monitoring/protection for comprehensive circuit safety.
VI. Wide Range of Industry Applications of the fiber laser cutting machine
Sheet metal cabinets and enclosures, metal signage and advertising letters, kitchen and bathroom hardware, construction machinery parts, electrical equipment housings, elevator decorative components, medical device parts, lighting hardware, ironwork for doors and windows, small-scale mechanical processing, export-oriented metal parts manufacturing, etc.
The compact 1515 model is the top choice for small processing plants, retail workshops, export enterprises, and startup sheet metal shops; it offers a small footprint, comprehensive functionality, and a quick return on investment.
